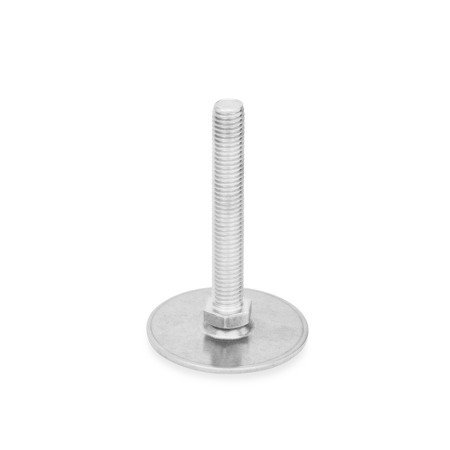

GN 44 Leveling Feet Stainless Steel AISI 316L, Threaded Stud Type


GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D0 - Without rubber pad / cap
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): S - Without nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): S - Without nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): SK - With nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): T - Without nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): TK - With nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D0 - Without rubber pad / cap
Version (Stud): SK - With nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D0 - Without rubber pad / cap
Version (Stud): T - Without nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D0 - Without rubber pad / cap
Version (Stud): TK - With nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): S - Without nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): SK - With nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): T - Without nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): TK - With nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): S - Without nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): SK - With nut, external hex at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): T - Without nut, wrench flat at the bottom

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): TK - With nut, wrench flat at the bottom

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 44 Print This Page Load Rating Information Plastic Characteristics Stainless Steel Characteristics

Product description

Information

Leveling feet GN 44 are intended for use in aggressive environments. The wide range of possible combinations of the base and the stud / socket versions make these leveling feet universally applicable.

The base with the rubber pad / cap protects sensitive surfaces and reduces lateral slippage. The type B0 can also be fastened to the mounting surface via the two mounting holes provided.

These leveling feet are supplied fully assembled and cannot be disassembled.

Specification

Base
Stainless steel AISI 316L
Plain, tumbled finish

Threaded stud
Stainless steel AISI 316L

Hex nut ISO 4032
Stainless steel AISI 316L

Rubber cap
TPE (Santoprene^®) ≈ 80 Shore A

Clipped on
Black

Rubber pad
NBR (Perbunan^®) 70 ±5 Shore A

Vulcanized, non-skid
Black

RoHS

Technical drawing

GN 44 Stainless Steel AISI 316L Leveling Feet, Threaded Stud Type sketch

Hide technical drawing

Part Options / Table

Type (Base)

D0	Without rubber pad / cap
B0	Without rubber pad / cap, with 2 mounting holes
D1	With rubber cap, clipped on, black
D3	With rubber pad, vulcanized, black

Version (Stud)

S	Without nut, external hex at the bottom
SK	With nut, external hex at the bottom
T	Without nut, wrench flat at the bottom
TK	With nut, wrench flat at the bottom

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-D0-S	1.57	M 8	1.57	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-50-D0-S	1.57	M 8	1.97	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-63-D0-S	1.57	M 8	2.48	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-50-D0-S	1.57	M 10	1.97	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-60-D0-S	1.57	M 10	2.36	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-80-D0-S	1.57	M 10	3.15	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-100-D0-S	1.57	M 10	3.94	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-60-D0-S	1.57	M 12	2.36	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-80-D0-S	1.57	M 12	3.15	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-100-D0-S	1.57	M 12	3.94	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-125-D0-S	1.57	M 12	4.92	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-50-M8-40-D0-S	1.97	M 8	1.57	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-50-D0-S	1.97	M 8	1.97	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-63-D0-S	1.97	M 8	2.48	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-50-D0-S	1.97	M 10	1.97	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-60-D0-S	1.97	M 10	2.36	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-80-D0-S	1.97	M 10	3.15	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-100-D0-S	1.97	M 10	3.94	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-60-D0-S	1.97	M 12	2.36	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-80-D0-S	1.97	M 12	3.15	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-100-D0-S	1.97	M 12	3.94	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-125-D0-S	1.97	M 12	4.92	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-60-M8-40-D0-S	2.36	M 8	1.57	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-50-D0-S	2.36	M 8	1.97	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-63-D0-S	2.36	M 8	2.48	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-50-D0-S	2.36	M 10	1.97	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-60-D0-S	2.36	M 10	2.36	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-80-D0-S	2.36	M 10	3.15	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-100-D0-S	2.36	M 10	3.94	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-60-D0-S	2.36	M 12	2.36	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-80-D0-S	2.36	M 12	3.15	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-100-D0-S	2.36	M 12	3.94	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-125-D0-S	2.36	M 12	4.92	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-80-M8-40-D0-S	3.15	M 8	1.57	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-50-D0-S	3.15	M 8	1.97	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-63-D0-S	3.15	M 8	2.48	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-50-D0-S	3.15	M 10	1.97	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-60-D0-S	3.15	M 10	2.36	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-80-D0-S	3.15	M 10	3.15	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-100-D0-S	3.15	M 10	3.94	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-60-D0-S	3.15	M 12	2.36	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-80-D0-S	3.15	M 12	3.15	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-100-D0-S	3.15	M 12	3.94	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-125-D0-S	3.15	M 12	4.92	-	-	0.12	0.47	-	-	2.52	-	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-B0-S	1.57	M 8	1.57	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-50-B0-S	1.57	M 8	1.97	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-63-B0-S	1.57	M 8	2.48	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-50-B0-S	1.57	M 10	1.97	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-60-B0-S	1.57	M 10	2.36	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-80-B0-S	1.57	M 10	3.15	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-100-B0-S	1.57	M 10	3.94	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-60-B0-S	1.57	M 12	2.36	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-80-B0-S	1.57	M 12	3.15	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-100-B0-S	1.57	M 12	3.94	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-125-B0-S	1.57	M 12	4.92	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-50-M8-40-B0-S	1.97	M 8	1.57	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-50-B0-S	1.97	M 8	1.97	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-63-B0-S	1.97	M 8	2.48	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-50-B0-S	1.97	M 10	1.97	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-60-B0-S	1.97	M 10	2.36	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-80-B0-S	1.97	M 10	3.15	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-100-B0-S	1.97	M 10	3.94	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-60-B0-S	1.97	M 12	2.36	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-80-B0-S	1.97	M 12	3.15	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-100-B0-S	1.97	M 12	3.94	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-125-B0-S	1.97	M 12	4.92	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-60-M8-40-B0-S	2.36	M 8	1.57	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-50-B0-S	2.36	M 8	1.97	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-63-B0-S	2.36	M 8	2.48	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-50-B0-S	2.36	M 10	1.97	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-60-B0-S	2.36	M 10	2.36	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-80-B0-S	2.36	M 10	3.15	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-100-B0-S	2.36	M 10	3.94	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-60-B0-S	2.36	M 12	2.36	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-80-B0-S	2.36	M 12	3.15	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-100-B0-S	2.36	M 12	3.94	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-125-B0-S	2.36	M 12	4.92	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-80-M8-40-B0-S	3.15	M 8	1.57	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-50-B0-S	3.15	M 8	1.97	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-63-B0-S	3.15	M 8	2.48	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-50-B0-S	3.15	M 10	1.97	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-60-B0-S	3.15	M 10	2.36	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-80-B0-S	3.15	M 10	3.15	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-100-B0-S	3.15	M 10	3.94	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-60-B0-S	3.15	M 12	2.36	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-80-B0-S	3.15	M 12	3.15	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-100-B0-S	3.15	M 12	3.94	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-125-B0-S	3.15	M 12	4.92	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-D1-S	1.57	M 8	1.57	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M8-50-D1-S	1.57	M 8	1.97	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M8-63-D1-S	1.57	M 8	2.48	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-50-D1-S	1.57	M 10	1.97	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-60-D1-S	1.57	M 10	2.36	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-80-D1-S	1.57	M 10	3.15	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-100-D1-S	1.57	M 10	3.94	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-60-D1-S	1.57	M 12	2.36	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-80-D1-S	1.57	M 12	3.15	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-100-D1-S	1.57	M 12	3.94	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-125-D1-S	1.57	M 12	4.92	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-50-M8-40-D1-S	1.97	M 8	1.57	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M8-50-D1-S	1.97	M 8	1.97	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M8-63-D1-S	1.97	M 8	2.48	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-50-D1-S	1.97	M 10	1.97	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-60-D1-S	1.97	M 10	2.36	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-80-D1-S	1.97	M 10	3.15	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-100-D1-S	1.97	M 10	3.94	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-60-D1-S	1.97	M 12	2.36	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-80-D1-S	1.97	M 12	3.15	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-100-D1-S	1.97	M 12	3.94	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-125-D1-S	1.97	M 12	4.92	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-60-M8-40-D1-S	2.36	M 8	1.57	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M8-50-D1-S	2.36	M 8	1.97	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M8-63-D1-S	2.36	M 8	2.48	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-50-D1-S	2.36	M 10	1.97	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-60-D1-S	2.36	M 10	2.36	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-80-D1-S	2.36	M 10	3.15	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-100-D1-S	2.36	M 10	3.94	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-60-D1-S	2.36	M 12	2.36	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-80-D1-S	2.36	M 12	3.15	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-100-D1-S	2.36	M 12	3.94	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-125-D1-S	2.36	M 12	4.92	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-80-M8-40-D1-S	3.15	M 8	1.57	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M8-50-D1-S	3.15	M 8	1.97	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M8-63-D1-S	3.15	M 8	2.48	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-50-D1-S	3.15	M 10	1.97	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-60-D1-S	3.15	M 10	2.36	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-80-D1-S	3.15	M 10	3.15	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-100-D1-S	3.15	M 10	3.94	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-60-D1-S	3.15	M 12	2.36	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-80-D1-S	3.15	M 12	3.15	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-100-D1-S	3.15	M 12	3.94	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-125-D1-S	3.15	M 12	4.92	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-D3-S	1.57	M 8	1.57	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M8-50-D3-S	1.57	M 8	1.97	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M8-63-D3-S	1.57	M 8	2.48	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-50-D3-S	1.57	M 10	1.97	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-60-D3-S	1.57	M 10	2.36	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-80-D3-S	1.57	M 10	3.15	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-100-D3-S	1.57	M 10	3.94	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-60-D3-S	1.57	M 12	2.36	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-80-D3-S	1.57	M 12	3.15	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-100-D3-S	1.57	M 12	3.94	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-125-D3-S	1.57	M 12	4.92	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-50-M8-40-D3-S	1.97	M 8	1.57	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M8-50-D3-S	1.97	M 8	1.97	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M8-63-D3-S	1.97	M 8	2.48	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-50-D3-S	1.97	M 10	1.97	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-60-D3-S	1.97	M 10	2.36	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-80-D3-S	1.97	M 10	3.15	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-100-D3-S	1.97	M 10	3.94	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-60-D3-S	1.97	M 12	2.36	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-80-D3-S	1.97	M 12	3.15	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-100-D3-S	1.97	M 12	3.94	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-125-D3-S	1.97	M 12	4.92	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-60-M8-40-D3-S	2.36	M 8	1.57	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M8-50-D3-S	2.36	M 8	1.97	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M8-63-D3-S	2.36	M 8	2.48	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-50-D3-S	2.36	M 10	1.97	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-60-D3-S	2.36	M 10	2.36	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-80-D3-S	2.36	M 10	3.15	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-100-D3-S	2.36	M 10	3.94	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-60-D3-S	2.36	M 12	2.36	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-80-D3-S	2.36	M 12	3.15	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-100-D3-S	2.36	M 12	3.94	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-125-D3-S	2.36	M 12	4.92	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-80-M8-40-D3-S	3.15	M 8	1.57	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M8-50-D3-S	3.15	M 8	1.97	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M8-63-D3-S	3.15	M 8	2.48	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-50-D3-S	3.15	M 10	1.97	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-60-D3-S	3.15	M 10	2.36	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-80-D3-S	3.15	M 10	3.15	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-100-D3-S	3.15	M 10	3.94	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-60-D3-S	3.15	M 12	2.36	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-80-D3-S	3.15	M 12	3.15	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-100-D3-S	3.15	M 12	3.94	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-125-D3-S	3.15	M 12	4.92	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-D0-SK	1.57	M 8	1.57	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-50-D0-SK	1.57	M 8	1.97	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-63-D0-SK	1.57	M 8	2.48	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-50-D0-SK	1.57	M 10	1.97	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-60-D0-SK	1.57	M 10	2.36	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-80-D0-SK	1.57	M 10	3.15	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-100-D0-SK	1.57	M 10	3.94	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-60-D0-SK	1.57	M 12	2.36	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-80-D0-SK	1.57	M 12	3.15	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-100-D0-SK	1.57	M 12	3.94	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-125-D0-SK	1.57	M 12	4.92	-	-	0.08	0.43	-	-	1.18	-	0.67	-
44-50-M8-40-D0-SK	1.97	M 8	1.57	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-50-D0-SK	1.97	M 8	1.97	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-63-D0-SK	1.97	M 8	2.48	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-50-D0-SK	1.97	M 10	1.97	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-60-D0-SK	1.97	M 10	2.36	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-80-D0-SK	1.97	M 10	3.15	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-100-D0-SK	1.97	M 10	3.94	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-60-D0-SK	1.97	M 12	2.36	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-80-D0-SK	1.97	M 12	3.15	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-100-D0-SK	1.97	M 12	3.94	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-125-D0-SK	1.97	M 12	4.92	-	-	0.10	0.43	-	-	1.50	-	0.67	-
44-60-M8-40-D0-SK	2.36	M 8	1.57	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-50-D0-SK	2.36	M 8	1.97	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-63-D0-SK	2.36	M 8	2.48	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-50-D0-SK	2.36	M 10	1.97	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-60-D0-SK	2.36	M 10	2.36	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-80-D0-SK	2.36	M 10	3.15	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-100-D0-SK	2.36	M 10	3.94	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-60-D0-SK	2.36	M 12	2.36	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-80-D0-SK	2.36	M 12	3.15	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-100-D0-SK	2.36	M 12	3.94	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-125-D0-SK	2.36	M 12	4.92	-	-	0.10	0.43	-	-	1.89	-	0.67	-
44-80-M8-40-D0-SK	3.15	M 8	1.57	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-50-D0-SK	3.15	M 8	1.97	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-63-D0-SK	3.15	M 8	2.48	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-50-D0-SK	3.15	M 10	1.97	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-60-D0-SK	3.15	M 10	2.36	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-80-D0-SK	3.15	M 10	3.15	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-100-D0-SK	3.15	M 10	3.94	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-60-D0-SK	3.15	M 12	2.36	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-80-D0-SK	3.15	M 12	3.15	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-100-D0-SK	3.15	M 12	3.94	-	-	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-125-D0-SK	3.15	M 12	4.92	-	-	0.12	0.47	-	-	2.52	-	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-B0-SK	1.57	M 8	1.57	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-50-B0-SK	1.57	M 8	1.97	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M8-63-B0-SK	1.57	M 8	2.48	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-50-B0-SK	1.57	M 10	1.97	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-60-B0-SK	1.57	M 10	2.36	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-80-B0-SK	1.57	M 10	3.15	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M10-100-B0-SK	1.57	M 10	3.94	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-60-B0-SK	1.57	M 12	2.36	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-80-B0-SK	1.57	M 12	3.15	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-100-B0-SK	1.57	M 12	3.94	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-40-M12-125-B0-SK	1.57	M 12	4.92	-	0.21	0.08	0.43	-	-	1.18	-	0.67	-
44-50-M8-40-B0-SK	1.97	M 8	1.57	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-50-B0-SK	1.97	M 8	1.97	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M8-63-B0-SK	1.97	M 8	2.48	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-50-B0-SK	1.97	M 10	1.97	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-60-B0-SK	1.97	M 10	2.36	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-80-B0-SK	1.97	M 10	3.15	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M10-100-B0-SK	1.97	M 10	3.94	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-60-B0-SK	1.97	M 12	2.36	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-80-B0-SK	1.97	M 12	3.15	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-100-B0-SK	1.97	M 12	3.94	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-50-M12-125-B0-SK	1.97	M 12	4.92	-	0.26	0.10	0.43	-	-	1.50	-	0.67	-
44-60-M8-40-B0-SK	2.36	M 8	1.57	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-50-B0-SK	2.36	M 8	1.97	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M8-63-B0-SK	2.36	M 8	2.48	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-50-B0-SK	2.36	M 10	1.97	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-60-B0-SK	2.36	M 10	2.36	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-80-B0-SK	2.36	M 10	3.15	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M10-100-B0-SK	2.36	M 10	3.94	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-60-B0-SK	2.36	M 12	2.36	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-80-B0-SK	2.36	M 12	3.15	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-100-B0-SK	2.36	M 12	3.94	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-60-M12-125-B0-SK	2.36	M 12	4.92	-	0.26	0.10	0.43	-	-	1.89	-	0.67	-
44-80-M8-40-B0-SK	3.15	M 8	1.57	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-50-B0-SK	3.15	M 8	1.97	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M8-63-B0-SK	3.15	M 8	2.48	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-50-B0-SK	3.15	M 10	1.97	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-60-B0-SK	3.15	M 10	2.36	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-80-B0-SK	3.15	M 10	3.15	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M10-100-B0-SK	3.15	M 10	3.94	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-60-B0-SK	3.15	M 12	2.36	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-80-B0-SK	3.15	M 12	3.15	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-100-B0-SK	3.15	M 12	3.94	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-
44-80-M12-125-B0-SK	3.15	M 12	4.92	-	0.33	0.12	0.47	-	-	2.52	-	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-D1-SK	1.57	M 8	1.57	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M8-50-D1-SK	1.57	M 8	1.97	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M8-63-D1-SK	1.57	M 8	2.48	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-50-D1-SK	1.57	M 10	1.97	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-60-D1-SK	1.57	M 10	2.36	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-80-D1-SK	1.57	M 10	3.15	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M10-100-D1-SK	1.57	M 10	3.94	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-60-D1-SK	1.57	M 12	2.36	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-80-D1-SK	1.57	M 12	3.15	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-100-D1-SK	1.57	M 12	3.94	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-40-M12-125-D1-SK	1.57	M 12	4.92	-	-	0.08	0.43	-	-	1.18	0.06	0.67	-
44-50-M8-40-D1-SK	1.97	M 8	1.57	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M8-50-D1-SK	1.97	M 8	1.97	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M8-63-D1-SK	1.97	M 8	2.48	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-50-D1-SK	1.97	M 10	1.97	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-60-D1-SK	1.97	M 10	2.36	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-80-D1-SK	1.97	M 10	3.15	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M10-100-D1-SK	1.97	M 10	3.94	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-60-D1-SK	1.97	M 12	2.36	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-80-D1-SK	1.97	M 12	3.15	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-100-D1-SK	1.97	M 12	3.94	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-50-M12-125-D1-SK	1.97	M 12	4.92	-	-	0.10	0.43	-	-	1.50	0.08	0.67	-
44-60-M8-40-D1-SK	2.36	M 8	1.57	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M8-50-D1-SK	2.36	M 8	1.97	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M8-63-D1-SK	2.36	M 8	2.48	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-50-D1-SK	2.36	M 10	1.97	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-60-D1-SK	2.36	M 10	2.36	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-80-D1-SK	2.36	M 10	3.15	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M10-100-D1-SK	2.36	M 10	3.94	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-60-D1-SK	2.36	M 12	2.36	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-80-D1-SK	2.36	M 12	3.15	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-100-D1-SK	2.36	M 12	3.94	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-60-M12-125-D1-SK	2.36	M 12	4.92	-	-	0.10	0.43	-	-	1.89	0.08	0.67	-
44-80-M8-40-D1-SK	3.15	M 8	1.57	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M8-50-D1-SK	3.15	M 8	1.97	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M8-63-D1-SK	3.15	M 8	2.48	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-50-D1-SK	3.15	M 10	1.97	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-60-D1-SK	3.15	M 10	2.36	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-80-D1-SK	3.15	M 10	3.15	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M10-100-D1-SK	3.15	M 10	3.94	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-60-D1-SK	3.15	M 12	2.36	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-80-D1-SK	3.15	M 12	3.15	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-100-D1-SK	3.15	M 12	3.94	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-
44-80-M12-125-D1-SK	3.15	M 12	4.92	-	-	0.12	0.47	-	-	2.52	0.08	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M8-40-D3-SK	1.57	M 8	1.57	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M8-50-D3-SK	1.57	M 8	1.97	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M8-63-D3-SK	1.57	M 8	2.48	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-50-D3-SK	1.57	M 10	1.97	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-60-D3-SK	1.57	M 10	2.36	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-80-D3-SK	1.57	M 10	3.15	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M10-100-D3-SK	1.57	M 10	3.94	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-60-D3-SK	1.57	M 12	2.36	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-80-D3-SK	1.57	M 12	3.15	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-100-D3-SK	1.57	M 12	3.94	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-40-M12-125-D3-SK	1.57	M 12	4.92	-	-	0.08	0.43	-	0.14	1.18	-	0.67	-
44-50-M8-40-D3-SK	1.97	M 8	1.57	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M8-50-D3-SK	1.97	M 8	1.97	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M8-63-D3-SK	1.97	M 8	2.48	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-50-D3-SK	1.97	M 10	1.97	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-60-D3-SK	1.97	M 10	2.36	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-80-D3-SK	1.97	M 10	3.15	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M10-100-D3-SK	1.97	M 10	3.94	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-60-D3-SK	1.97	M 12	2.36	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-80-D3-SK	1.97	M 12	3.15	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-100-D3-SK	1.97	M 12	3.94	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-50-M12-125-D3-SK	1.97	M 12	4.92	-	-	0.10	0.43	-	0.16	1.50	-	0.67	-
44-60-M8-40-D3-SK	2.36	M 8	1.57	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M8-50-D3-SK	2.36	M 8	1.97	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M8-63-D3-SK	2.36	M 8	2.48	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-50-D3-SK	2.36	M 10	1.97	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-60-D3-SK	2.36	M 10	2.36	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-80-D3-SK	2.36	M 10	3.15	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M10-100-D3-SK	2.36	M 10	3.94	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-60-D3-SK	2.36	M 12	2.36	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-80-D3-SK	2.36	M 12	3.15	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-100-D3-SK	2.36	M 12	3.94	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-60-M12-125-D3-SK	2.36	M 12	4.92	-	-	0.10	0.43	-	0.18	1.89	-	0.67	-
44-80-M8-40-D3-SK	3.15	M 8	1.57	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M8-50-D3-SK	3.15	M 8	1.97	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M8-63-D3-SK	3.15	M 8	2.48	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-50-D3-SK	3.15	M 10	1.97	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-60-D3-SK	3.15	M 10	2.36	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-80-D3-SK	3.15	M 10	3.15	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M10-100-D3-SK	3.15	M 10	3.94	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-60-D3-SK	3.15	M 12	2.36	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-80-D3-SK	3.15	M 12	3.15	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-100-D3-SK	3.15	M 12	3.94	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-
44-80-M12-125-D3-SK	3.15	M 12	4.92	-	-	0.12	0.47	-	0.20	2.52	-	0.67	-

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M16-75-D0-T	1.57	M 16	-	2.95	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-100-D0-T	1.57	M 16	-	3.94	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-125-D0-T	1.57	M 16	-	4.92	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-150-D0-T	1.57	M 16	-	5.91	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-200-D0-T	1.57	M 16	-	7.87	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-250-D0-T	1.57	M 16	-	9.84	-	0.08	-	0.67	-	1.18	-	-	0.47
44-50-M16-75-D0-T	1.97	M 16	-	2.95	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-100-D0-T	1.97	M 16	-	3.94	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-125-D0-T	1.97	M 16	-	4.92	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-150-D0-T	1.97	M 16	-	5.91	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-200-D0-T	1.97	M 16	-	7.87	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-250-D0-T	1.97	M 16	-	9.84	-	0.10	-	0.67	-	1.50	-	-	0.47
44-60-M16-75-D0-T	2.36	M 16	-	2.95	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-100-D0-T	2.36	M 16	-	3.94	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-125-D0-T	2.36	M 16	-	4.92	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-150-D0-T	2.36	M 16	-	5.91	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-200-D0-T	2.36	M 16	-	7.87	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-250-D0-T	2.36	M 16	-	9.84	-	0.10	-	0.67	-	1.89	-	-	0.47
44-80-M16-75-D0-T	3.15	M 16	-	2.95	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-100-D0-T	3.15	M 16	-	3.94	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-125-D0-T	3.15	M 16	-	4.92	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-150-D0-T	3.15	M 16	-	5.91	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-200-D0-T	3.15	M 16	-	7.87	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-250-D0-T	3.15	M 16	-	9.84	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M20-75-D0-T	3.15	M 20	-	2.95	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-100-D0-T	3.15	M 20	-	3.94	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-125-D0-T	3.15	M 20	-	4.92	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-150-D0-T	3.15	M 20	-	5.91	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-200-D0-T	3.15	M 20	-	7.87	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-250-D0-T	3.15	M 20	-	9.84	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M24-100-D0-T	3.15	M 24	-	3.94	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-125-D0-T	3.15	M 24	-	4.92	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-150-D0-T	3.15	M 24	-	5.91	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-200-D0-T	3.15	M 24	-	7.87	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-300-D0-T	3.15	M 24	-	11.81	-	0.12	-	0.87	-	2.52	-	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M16-75-D1-T	1.57	M 16	-	2.95	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-100-D1-T	1.57	M 16	-	3.94	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-125-D1-T	1.57	M 16	-	4.92	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-150-D1-T	1.57	M 16	-	5.91	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-200-D1-T	1.57	M 16	-	7.87	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-250-D1-T	1.57	M 16	-	9.84	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-50-M16-75-D1-T	1.97	M 16	-	2.95	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-100-D1-T	1.97	M 16	-	3.94	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-125-D1-T	1.97	M 16	-	4.92	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-150-D1-T	1.97	M 16	-	5.91	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-200-D1-T	1.97	M 16	-	7.87	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-250-D1-T	1.97	M 16	-	9.84	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-60-M16-75-D1-T	2.36	M 16	-	2.95	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-100-D1-T	2.36	M 16	-	3.94	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-125-D1-T	2.36	M 16	-	4.92	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-150-D1-T	2.36	M 16	-	5.91	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-200-D1-T	2.36	M 16	-	7.87	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-250-D1-T	2.36	M 16	-	9.84	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-80-M16-75-D1-T	3.15	M 16	-	2.95	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-100-D1-T	3.15	M 16	-	3.94	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-125-D1-T	3.15	M 16	-	4.92	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-150-D1-T	3.15	M 16	-	5.91	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-200-D1-T	3.15	M 16	-	7.87	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-250-D1-T	3.15	M 16	-	9.84	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M20-75-D1-T	3.15	M 20	-	2.95	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-100-D1-T	3.15	M 20	-	3.94	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-125-D1-T	3.15	M 20	-	4.92	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-150-D1-T	3.15	M 20	-	5.91	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-200-D1-T	3.15	M 20	-	7.87	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-250-D1-T	3.15	M 20	-	9.84	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M24-100-D1-T	3.15	M 24	-	3.94	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-125-D1-T	3.15	M 24	-	4.92	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-150-D1-T	3.15	M 24	-	5.91	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-200-D1-T	3.15	M 24	-	7.87	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-300-D1-T	3.15	M 24	-	11.81	-	0.12	-	0.87	-	2.52	0.08	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M16-75-D3-T	1.57	M 16	-	2.95	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-100-D3-T	1.57	M 16	-	3.94	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-125-D3-T	1.57	M 16	-	4.92	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-150-D3-T	1.57	M 16	-	5.91	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-200-D3-T	1.57	M 16	-	7.87	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-250-D3-T	1.57	M 16	-	9.84	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-50-M16-75-D3-T	1.97	M 16	-	2.95	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-100-D3-T	1.97	M 16	-	3.94	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-125-D3-T	1.97	M 16	-	4.92	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-150-D3-T	1.97	M 16	-	5.91	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-200-D3-T	1.97	M 16	-	7.87	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-250-D3-T	1.97	M 16	-	9.84	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-60-M16-75-D3-T	2.36	M 16	-	2.95	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-100-D3-T	2.36	M 16	-	3.94	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-125-D3-T	2.36	M 16	-	4.92	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-150-D3-T	2.36	M 16	-	5.91	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-200-D3-T	2.36	M 16	-	7.87	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-250-D3-T	2.36	M 16	-	9.84	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-80-M16-75-D3-T	3.15	M 16	-	2.95	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-100-D3-T	3.15	M 16	-	3.94	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-125-D3-T	3.15	M 16	-	4.92	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-150-D3-T	3.15	M 16	-	5.91	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-200-D3-T	3.15	M 16	-	7.87	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-250-D3-T	3.15	M 16	-	9.84	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M20-75-D3-T	3.15	M 20	-	2.95	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-100-D3-T	3.15	M 20	-	3.94	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-125-D3-T	3.15	M 20	-	4.92	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-150-D3-T	3.15	M 20	-	5.91	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-200-D3-T	3.15	M 20	-	7.87	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-250-D3-T	3.15	M 20	-	9.84	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M24-100-D3-T	3.15	M 24	-	3.94	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-125-D3-T	3.15	M 24	-	4.92	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-150-D3-T	3.15	M 24	-	5.91	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-200-D3-T	3.15	M 24	-	7.87	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-300-D3-T	3.15	M 24	-	11.81	-	0.12	-	0.87	0.20	2.52	-	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M16-75-D0-TK	1.57	M 16	-	2.95	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-100-D0-TK	1.57	M 16	-	3.94	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-125-D0-TK	1.57	M 16	-	4.92	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-150-D0-TK	1.57	M 16	-	5.91	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-200-D0-TK	1.57	M 16	-	7.87	-	0.08	-	0.67	-	1.18	-	-	0.47
44-40-M16-250-D0-TK	1.57	M 16	-	9.84	-	0.08	-	0.67	-	1.18	-	-	0.47
44-50-M16-75-D0-TK	1.97	M 16	-	2.95	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-100-D0-TK	1.97	M 16	-	3.94	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-125-D0-TK	1.97	M 16	-	4.92	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-150-D0-TK	1.97	M 16	-	5.91	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-200-D0-TK	1.97	M 16	-	7.87	-	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-250-D0-TK	1.97	M 16	-	9.84	-	0.10	-	0.67	-	1.50	-	-	0.47
44-60-M16-75-D0-TK	2.36	M 16	-	2.95	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-100-D0-TK	2.36	M 16	-	3.94	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-125-D0-TK	2.36	M 16	-	4.92	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-150-D0-TK	2.36	M 16	-	5.91	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-200-D0-TK	2.36	M 16	-	7.87	-	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-250-D0-TK	2.36	M 16	-	9.84	-	0.10	-	0.67	-	1.89	-	-	0.47
44-80-M16-75-D0-TK	3.15	M 16	-	2.95	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-100-D0-TK	3.15	M 16	-	3.94	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-125-D0-TK	3.15	M 16	-	4.92	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-150-D0-TK	3.15	M 16	-	5.91	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-200-D0-TK	3.15	M 16	-	7.87	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-250-D0-TK	3.15	M 16	-	9.84	-	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M20-75-D0-TK	3.15	M 20	-	2.95	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-100-D0-TK	3.15	M 20	-	3.94	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-125-D0-TK	3.15	M 20	-	4.92	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-150-D0-TK	3.15	M 20	-	5.91	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-200-D0-TK	3.15	M 20	-	7.87	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-250-D0-TK	3.15	M 20	-	9.84	-	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M24-100-D0-TK	3.15	M 24	-	3.94	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-125-D0-TK	3.15	M 24	-	4.92	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-150-D0-TK	3.15	M 24	-	5.91	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-200-D0-TK	3.15	M 24	-	7.87	-	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-300-D0-TK	3.15	M 24	-	11.81	-	0.12	-	0.87	-	2.52	-	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M16-75-D1-TK	1.57	M 16	-	2.95	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-100-D1-TK	1.57	M 16	-	3.94	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-125-D1-TK	1.57	M 16	-	4.92	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-150-D1-TK	1.57	M 16	-	5.91	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-200-D1-TK	1.57	M 16	-	7.87	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-40-M16-250-D1-TK	1.57	M 16	-	9.84	-	0.08	-	0.67	-	1.18	0.06	-	0.47
44-50-M16-75-D1-TK	1.97	M 16	-	2.95	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-100-D1-TK	1.97	M 16	-	3.94	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-125-D1-TK	1.97	M 16	-	4.92	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-150-D1-TK	1.97	M 16	-	5.91	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-200-D1-TK	1.97	M 16	-	7.87	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-50-M16-250-D1-TK	1.97	M 16	-	9.84	-	0.10	-	0.67	-	1.50	0.08	-	0.47
44-60-M16-75-D1-TK	2.36	M 16	-	2.95	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-100-D1-TK	2.36	M 16	-	3.94	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-125-D1-TK	2.36	M 16	-	4.92	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-150-D1-TK	2.36	M 16	-	5.91	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-200-D1-TK	2.36	M 16	-	7.87	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-60-M16-250-D1-TK	2.36	M 16	-	9.84	-	0.10	-	0.67	-	1.89	0.08	-	0.47
44-80-M16-75-D1-TK	3.15	M 16	-	2.95	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-100-D1-TK	3.15	M 16	-	3.94	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-125-D1-TK	3.15	M 16	-	4.92	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-150-D1-TK	3.15	M 16	-	5.91	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-200-D1-TK	3.15	M 16	-	7.87	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M16-250-D1-TK	3.15	M 16	-	9.84	-	0.12	-	0.71	-	2.52	0.08	-	0.47
44-80-M20-75-D1-TK	3.15	M 20	-	2.95	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-100-D1-TK	3.15	M 20	-	3.94	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-125-D1-TK	3.15	M 20	-	4.92	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-150-D1-TK	3.15	M 20	-	5.91	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-200-D1-TK	3.15	M 20	-	7.87	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M20-250-D1-TK	3.15	M 20	-	9.84	-	0.12	-	0.75	-	2.52	0.08	-	0.59
44-80-M24-100-D1-TK	3.15	M 24	-	3.94	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-125-D1-TK	3.15	M 24	-	4.92	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-150-D1-TK	3.15	M 24	-	5.91	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-200-D1-TK	3.15	M 24	-	7.87	-	0.12	-	0.87	-	2.52	0.08	-	0.75
44-80-M24-300-D1-TK	3.15	M 24	-	11.81	-	0.12	-	0.87	-	2.52	0.08	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-40-M16-75-D3-TK	1.57	M 16	-	2.95	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-100-D3-TK	1.57	M 16	-	3.94	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-125-D3-TK	1.57	M 16	-	4.92	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-150-D3-TK	1.57	M 16	-	5.91	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-200-D3-TK	1.57	M 16	-	7.87	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-40-M16-250-D3-TK	1.57	M 16	-	9.84	-	0.08	-	0.67	0.14	1.18	-	-	0.47
44-50-M16-75-D3-TK	1.97	M 16	-	2.95	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-100-D3-TK	1.97	M 16	-	3.94	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-125-D3-TK	1.97	M 16	-	4.92	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-150-D3-TK	1.97	M 16	-	5.91	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-200-D3-TK	1.97	M 16	-	7.87	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-50-M16-250-D3-TK	1.97	M 16	-	9.84	-	0.10	-	0.67	0.16	1.50	-	-	0.47
44-60-M16-75-D3-TK	2.36	M 16	-	2.95	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-100-D3-TK	2.36	M 16	-	3.94	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-125-D3-TK	2.36	M 16	-	4.92	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-150-D3-TK	2.36	M 16	-	5.91	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-200-D3-TK	2.36	M 16	-	7.87	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-60-M16-250-D3-TK	2.36	M 16	-	9.84	-	0.10	-	0.67	0.18	1.89	-	-	0.47
44-80-M16-75-D3-TK	3.15	M 16	-	2.95	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-100-D3-TK	3.15	M 16	-	3.94	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-125-D3-TK	3.15	M 16	-	4.92	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-150-D3-TK	3.15	M 16	-	5.91	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-200-D3-TK	3.15	M 16	-	7.87	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M16-250-D3-TK	3.15	M 16	-	9.84	-	0.12	-	0.71	0.20	2.52	-	-	0.47
44-80-M20-75-D3-TK	3.15	M 20	-	2.95	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-100-D3-TK	3.15	M 20	-	3.94	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-125-D3-TK	3.15	M 20	-	4.92	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-150-D3-TK	3.15	M 20	-	5.91	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-200-D3-TK	3.15	M 20	-	7.87	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M20-250-D3-TK	3.15	M 20	-	9.84	-	0.12	-	0.75	0.20	2.52	-	-	0.59
44-80-M24-100-D3-TK	3.15	M 24	-	3.94	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-125-D3-TK	3.15	M 24	-	4.92	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-150-D3-TK	3.15	M 24	-	5.91	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-200-D3-TK	3.15	M 24	-	7.87	-	0.12	-	0.87	0.20	2.52	-	-	0.75
44-80-M24-300-D3-TK	3.15	M 24	-	11.81	-	0.12	-	0.87	0.20	2.52	-	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-50-M16-75-B0-T	1.97	M 16	-	2.95	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-100-B0-T	1.97	M 16	-	3.94	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-125-B0-T	1.97	M 16	-	4.92	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-150-B0-T	1.97	M 16	-	5.91	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-200-B0-T	1.97	M 16	-	7.87	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-250-B0-T	1.97	M 16	-	9.84	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-60-M16-75-B0-T	2.36	M 16	-	2.95	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-100-B0-T	2.36	M 16	-	3.94	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-125-B0-T	2.36	M 16	-	4.92	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-150-B0-T	2.36	M 16	-	5.91	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-200-B0-T	2.36	M 16	-	7.87	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-250-B0-T	2.36	M 16	-	9.84	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-80-M16-75-B0-T	3.15	M 16	-	2.95	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-100-B0-T	3.15	M 16	-	3.94	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-125-B0-T	3.15	M 16	-	4.92	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-150-B0-T	3.15	M 16	-	5.91	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-200-B0-T	3.15	M 16	-	7.87	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-250-B0-T	3.15	M 16	-	9.84	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M20-75-B0-T	3.15	M 20	-	2.95	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-100-B0-T	3.15	M 20	-	3.94	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-125-B0-T	3.15	M 20	-	4.92	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-150-B0-T	3.15	M 20	-	5.91	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-200-B0-T	3.15	M 20	-	7.87	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-250-B0-T	3.15	M 20	-	9.84	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M24-100-B0-T	3.15	M 24	-	3.94	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-125-B0-T	3.15	M 24	-	4.92	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-150-B0-T	3.15	M 24	-	5.91	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-200-B0-T	3.15	M 24	-	7.87	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-300-B0-T	3.15	M 24	-	11.81	0.33	0.12	-	0.87	-	2.52	-	-	0.75

Part Number	d₁	d₂ Thread	l₁ Version S / SK	Version T / TK	d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

44-50-M16-75-B0-TK	1.97	M 16	-	2.95	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-100-B0-TK	1.97	M 16	-	3.94	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-125-B0-TK	1.97	M 16	-	4.92	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-150-B0-TK	1.97	M 16	-	5.91	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-200-B0-TK	1.97	M 16	-	7.87	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-50-M16-250-B0-TK	1.97	M 16	-	9.84	0.26	0.10	-	0.67	-	1.50	-	-	0.47
44-60-M16-75-B0-TK	2.36	M 16	-	2.95	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-100-B0-TK	2.36	M 16	-	3.94	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-125-B0-TK	2.36	M 16	-	4.92	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-150-B0-TK	2.36	M 16	-	5.91	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-200-B0-TK	2.36	M 16	-	7.87	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-60-M16-250-B0-TK	2.36	M 16	-	9.84	0.26	0.10	-	0.67	-	1.89	-	-	0.47
44-80-M16-75-B0-TK	3.15	M 16	-	2.95	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-100-B0-TK	3.15	M 16	-	3.94	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-125-B0-TK	3.15	M 16	-	4.92	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-150-B0-TK	3.15	M 16	-	5.91	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-200-B0-TK	3.15	M 16	-	7.87	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M16-250-B0-TK	3.15	M 16	-	9.84	0.33	0.12	-	0.71	-	2.52	-	-	0.47
44-80-M20-75-B0-TK	3.15	M 20	-	2.95	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-100-B0-TK	3.15	M 20	-	3.94	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-125-B0-TK	3.15	M 20	-	4.92	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-150-B0-TK	3.15	M 20	-	5.91	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-200-B0-TK	3.15	M 20	-	7.87	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M20-250-B0-TK	3.15	M 20	-	9.84	0.33	0.12	-	0.75	-	2.52	-	-	0.59
44-80-M24-100-B0-TK	3.15	M 24	-	3.94	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-125-B0-TK	3.15	M 24	-	4.92	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-150-B0-TK	3.15	M 24	-	5.91	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-200-B0-TK	3.15	M 24	-	7.87	0.33	0.12	-	0.87	-	2.52	-	-	0.75
44-80-M24-300-B0-TK	3.15	M 24	-	11.81	0.33	0.12	-	0.87	-	2.52	-	-	0.75

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

d₁	d₂ Thread	l₁ Version S / SK				Version T / TK						d₃	h₁	h₃	h₄	h₆	m	s	A/F₁	A/F₂

1.57	M 8	1.57	1.97	2.48	-	-	-	-	-	-	-	0.21	0.08	0.43	-	0.14	1.18	0.06	0.67	-
1.57	M 10	1.97	2.36	3.15	3.94	-	-	-	-	-	-	0.21	0.08	0.43	-	0.14	1.18	0.06	0.67	-
1.57	M 12	2.36	3.15	3.94	4.92	-	-	-	-	-	-	0.21	0.08	0.43	-	0.14	1.18	0.06	0.67	-
1.57*	M 16	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	0.21	0.08	-	0.67	0.14	1.18	0.06	-	0.47
1.97	M 8	1.57	1.97	2.48	-	-	-	-	-	-	-	0.26	0.10	0.43	-	0.16	1.50	0.08	0.67	-
1.97	M 10	1.97	2.36	3.15	3.94	-	-	-	-	-	-	0.26	0.10	0.43	-	0.16	1.50	0.08	0.67	-
1.97	M 12	2.36	3.15	3.94	4.92	-	-	-	-	-	-	0.26	0.10	0.43	-	0.16	1.50	0.08	0.67	-
1.97	M 16	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	0.26	0.10	-	0.67	0.16	1.50	0.08	-	0.47
2.36	M 8	1.57	1.97	2.48	-	-	-	-	-	-	-	0.26	0.10	0.43	-	0.18	1.89	0.08	0.67	-
2.36	M 10	1.97	2.36	3.15	3.94	-	-	-	-	-	-	0.26	0.10	0.43	-	0.18	1.89	0.08	0.67	-
2.36	M 12	2.36	3.15	3.94	4.92	-	-	-	-	-	-	0.26	0.10	0.43	-	0.18	1.89	0.08	0.67	-
2.36	M 16	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	0.26	0.10	-	0.67	0.18	1.89	0.08	-	0.47
3.15	M 8	1.57	1.97	2.48	-	-	-	-	-	-	-	0.33	0.12	0.47	-	0.20	2.52	0.08	0.67	-
3.15	M 10	1.97	2.36	3.15	3.94	-	-	-	-	-	-	0.33	0.12	0.47	-	0.20	2.52	0.08	0.67	-
3.15	M 12	2.36	3.15	3.94	4.92	-	-	-	-	-	-	0.33	0.12	0.47	-	0.20	2.52	0.08	0.67	-
3.15	M 16	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	0.33	0.12	-	0.71	0.20	2.52	0.08	-	0.47
3.15	M 20	-	-	-	-	2.95	3.94	4.92	5.91	7.87	9.84	0.33	0.12	-	0.75	0.20	2.52	0.08	-	0.59
3.15	M 24	-	-	-	-	3.94	4.92	5.91	7.87	11.81	-	0.33	0.12	-	0.87	0.20	2.52	0.08	-	0.75

* Not available in type B0

Build & Price

3D Product Configurator

Selected Part

Part Number

Total US Dollars (net)

$7.64

Call / Email for Delivery Time

Quantity

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	49	$7.64
50	99	$7.00
100	249	$6.37
≥ 250		$5.73

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.138 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351

All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

About CAD Downloads

Save as Favorites

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 44 Leveling Feet Stainless Steel AISI 316L, Threaded Stud Type


Product Family Stainless Steel

Product description

Information

Specification

Technical drawing

Part Options / Table

Type (Base)

Version (Stud)

Type (Base): D0 - Without rubber pad / cap
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): TK - With nut, wrench flat at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): TK - With nut, wrench flat at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): TK - With nut, wrench flat at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): TK - With nut, wrench flat at the bottom

Metric

Build & Price

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

GN 44 Leveling Feet Stainless Steel AISI 316L, Threaded Stud Type


Product Family Stainless Steel

Product description

Information

Specification

Technical drawing

Part Options / Table

Type (Base)

Version (Stud)

Type (Base): D0 - Without rubber pad / capVersion (Stud): S - Without nut, external hex at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holesVersion (Stud): S - Without nut, external hex at the bottom

Type (Base): D1 - With rubber cap, clipped on, blackVersion (Stud): S - Without nut, external hex at the bottom

Type (Base): D3 - With rubber pad, vulcanized, blackVersion (Stud): S - Without nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / capVersion (Stud): SK - With nut, external hex at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holesVersion (Stud): SK - With nut, external hex at the bottom

Type (Base): D1 - With rubber cap, clipped on, blackVersion (Stud): SK - With nut, external hex at the bottom

Type (Base): D3 - With rubber pad, vulcanized, blackVersion (Stud): SK - With nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / capVersion (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D1 - With rubber cap, clipped on, blackVersion (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D3 - With rubber pad, vulcanized, blackVersion (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D0 - Without rubber pad / capVersion (Stud): TK - With nut, wrench flat at the bottom

Type (Base): D1 - With rubber cap, clipped on, blackVersion (Stud): TK - With nut, wrench flat at the bottom

Type (Base): D3 - With rubber pad, vulcanized, blackVersion (Stud): TK - With nut, wrench flat at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holesVersion (Stud): T - Without nut, wrench flat at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holesVersion (Stud): TK - With nut, wrench flat at the bottom

Metric

Build & Price

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

Type (Base): D0 - Without rubber pad / cap
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): S - Without nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): SK - With nut, external hex at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): D0 - Without rubber pad / cap
Version (Stud): TK - With nut, wrench flat at the bottom

Type (Base): D1 - With rubber cap, clipped on, black
Version (Stud): TK - With nut, wrench flat at the bottom

Type (Base): D3 - With rubber pad, vulcanized, black
Version (Stud): TK - With nut, wrench flat at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): T - Without nut, wrench flat at the bottom

Type (Base): B0 - Without rubber pad / cap, with 2 mounting holes
Version (Stud): TK - With nut, wrench flat at the bottom
