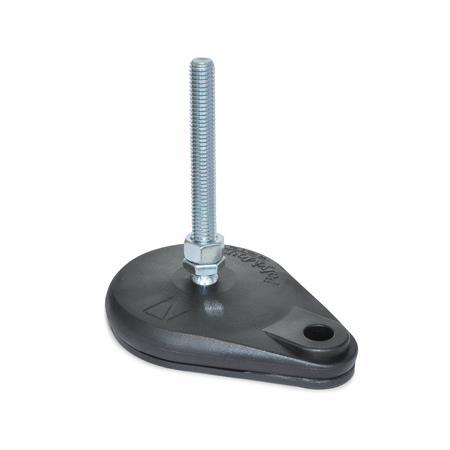

PM 600 "PolyMount"™ Leveling Mounts Steel, Plastic Base, Threaded Stud Type, Teardrop Shape


Standard Sheet PM 600 Print This Page Plastic Characteristics Elastomer Characteristics

Product description

Information

PM 600 "PolyMount"^TM leveling mounts are an economical choice for light, medium, and heavy-duty applications.

The base on the teardrop makes it easier to drill for and install a mounting bolt. The shape offsets the single mounting hole to the outside of the machine footprint, providing the clearance necessary to drill the mounting hole without moving the machine. The mounting hole can accommodate to a 1/2" diameter mounting bolt.

The mount swivels 15° to all sides of the center line to adjust to uneven surfaces.

To determine the proper mount size and required load per mount, divide the equipment’s weight by the number of mounts needed.

The hexagon nut is a standard part of the assembly.

Specification

Base
Nylon plastic
Glass fiber reinforced

Threaded stud
Low carbon steel

Clear zinc plated
Forged and thread rolled

Rubber pad
Elastomer, non-skid

RoHS compliant

On request

Additional sizes

"Socket Lock" technology to lock stud into place, preventing pullout in especially harsh applications

Technical drawing

PM 600 Steel "PolyMount"™ Leveling Mounts, Plastic Base, Threaded Stud Type, Teardrop Shape sketch

Hide technical drawing

Part Options / Table

Type

A	Without pad
E	With rubber pad

Part Number A - Without pad	Part Number E - With rubber pad	d₁ Nominal dimension	d₁ Actual dimension	d₂ Thread	l₁	b	d₃	k	l₂	l₃	l₄	l₅	A/F	Max. load

8T4WR8	8T4WR8N	4.00	3.785	1/2 x 13	4.00	5.32	0.53	2.75	1.27	0.66	0.83	0.16	0.75	5000 lbf (22241.10 N)
8T6WR8	8T6WR8N	4.00	3.785	1/2 x 13	6.00	5.32	0.53	2.75	1.27	0.66	0.83	0.16	0.75	5000 lbf (22241.10 N)
10T4WR8	10T4WR8N	4.00	3.785	5/8 x 11	4.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	0.88	6000 lbf (26689.32 N)
10T6WR8	10T6WR8N	4.00	3.785	5/8 x 11	6.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	0.88	6000 lbf (26689.32 N)
11T6WR8	11T6WR8N	4.00	3.785	3/4 x 10	6.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	1.06	7500 lbf (33361.66 N)
11T8WR8	11T8WR8N	4.00	3.785	3/4 x 10	8.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	1.06	7500 lbf (33361.66 N)
12T6WR8	12T6WR8N	4.00	3.785	1 x 8	6.00	5.32	0.53	2.75	1.58	0.66	0.83	0.16	1.38	7500 lbf (33361.66 N)
12T8WR8	12T8WR8N	4.00	3.785	1 x 8	8.00	5.32	0.53	2.75	1.58	0.66	0.83	0.16	1.38	7500 lbf (33361.66 N)

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁ Nominal dimension	d₁ Actual dimension	d₂ Thread	l₁	b	d₃	k	l₂	l₃	l₄	l₅	A/F	Max. load

4.00	3.785	1/2 x 13	4.00	5.32	0.53	2.75	1.27	0.66	0.83	0.16	0.75	5000 lbf (22241.10 N)
4.00	3.785	1/2 x 13	6.00	5.32	0.53	2.75	1.27	0.66	0.83	0.16	0.75	5000 lbf (22241.10 N)
4.00	3.785	5/8 x 11	4.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	0.88	6000 lbf (26689.32 N)
4.00	3.785	5/8 x 11	6.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	0.88	6000 lbf (26689.32 N)
4.00	3.785	3/4 x 10	6.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	1.06	7500 lbf (33361.66 N)
4.00	3.785	3/4 x 10	8.00	5.32	0.53	2.75	1.40	0.66	0.83	0.16	1.06	7500 lbf (33361.66 N)
4.00	3.785	1 x 8	6.00	5.32	0.53	2.75	1.58	0.66	0.83	0.16	1.38	7500 lbf (33361.66 N)
4.00	3.785	1 x 8	8.00	5.32	0.53	2.75	1.58	0.66	0.83	0.16	1.38	7500 lbf (33361.66 N)
