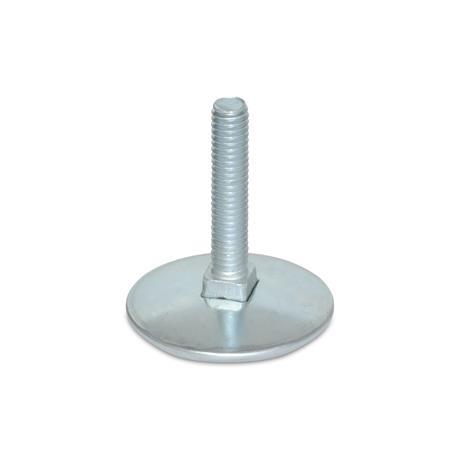

SN 974 Rattle Mounts Steel, Fixed Threaded Stud Type, with Optional Slot


SN 974 Steel Rattle Mounts, Fixed Threaded Stud Type, with Optional Slot

Product description

Information

SN 974 rattle mounts are used for light duty applications such as home gaming and vending machines.

These low cost levelers also have an optional slot on top for adjusting height with a screwdriver.

Specification

Base / stud
Steel
  • Clear zinc plated
  • Slight articulation

RoHS compliant

Technical drawing

3D
Hide technical drawing
SN 974 Steel Rattle Mounts, Fixed Threaded Stud Type, with Optional Slot sketch

Part Options / Table

Type

AWithout slot
SWith slot at the top
Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)
d1d2
Thread
l1l2Max. load
1.753/8 x 161.251.752.750.50500 lbf (2224.11 N)

Build & Price

3D Product Configurator
Base diameter d1
Thread d2
Stud length l1
Type


Selected Part

Total US Dollars (net)
$1.64
In Stock: 2079
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
149$1.64
5099$1.50
100249$1.37
≥ 250$1.23
Prop 65: -
Please contact our Sales Department for more information.
RoHS: -
No details on RoHS compatibility are available at this time. Please contact our Sales Department for more information.
Weight: -
If the weight is not listed, please contact our Sales Department for more information.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Other Data Formats

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code above.

CAD Download Tutorial About CAD Downloads
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

SN 974-1.75-3/8x16-1.25-ASN 974-1.75-3/8x16-1.25-SSN 974-1.75-3/8x16-1.75-ASN 974-1.75-3/8x16-1.75-SSN 974-1.75-3/8x16-2.75-ASN 974-1.75-3/8x16-2.75-S
