GN 2248 High Response Couplings Aluminum, Vulcanized, Vibration-Damping, with Clamping Hub

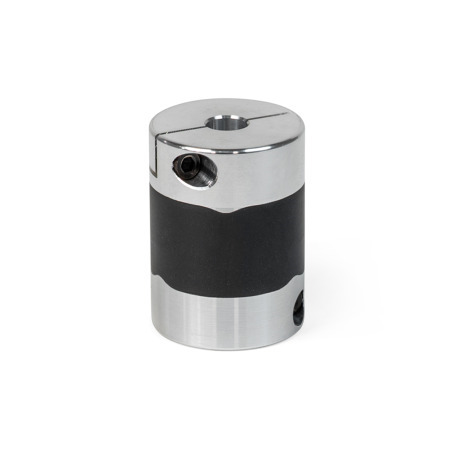

High Response Couplings GN 2248: Aluminum, Vulcanized, Vibration-Damping, with Clamping Hub

Couplings - Overview of Types General Information for Couplings Mounting Information for Couplings Technical Information for Couplings ISO Fundamental Tolerances Plastic Characteristics

Product description

High response couplings GN 2248 transmit angular positions and torques with high precision and zero backlash. The elastomer element bonds the clamping hubs together, compensating for shaft misalignments and runout tolerances. The clamping hubs ensure easy installation.

High response couplings GN 2248 are primarily used in applications where precise position and motion transmission is required, e.g., in drive technology on test benches or similar applications.

Specification

Hub
AluminumAL

Elastomer element
Hydrogenated acrylonitrile butadiene rubberH
(HNBR)

Black
Hardness 75 ±5 Shore A

Operating temperature
-4 °F to +176 °F (-20 °C to +80 °C)

Socket cap screws ISO 4762
Steel, blackened finish

RoHS

GN 2248 Aluminum High Response Couplings, Vulcanized, Vibration-Damping, with Clamping Hub sketch

Hide technical drawing

Part Options / Table

Bore code

B	Without keyway

Part Number	d₁	d₂ - d₃ H8 Recommended shaft tolerance h7	d₄	l₁	l₂ Max. shaft insertion depth	l₃	l₄

2248-15-B4-4-AL-H	0.59	4-4 H8 / h7	M 1.6	0.91	0.26	0.08	0.20
2248-15-B4-5-AL-H	0.59	4-5 H8 / h7	M 1.6	0.91	0.26	0.08	0.20
2248-15-B5-5-AL-H	0.59	5-5 H8 / h7	M 1.6	0.91	0.26	0.08	0.20
2248-19-B5-5-AL-H	0.75	5-5 H8 / h7	M 2	1.02	0.30	0.10	0.26
2248-19-B5-6-AL-H	0.75	5-6 H8 / h7	M 2	1.02	0.30	0.10	0.26
2248-19-B5-8-AL-H	0.75	5-8 H8 / h7	M 2	1.02	0.30	0.10	0.26
2248-19-B6-6-AL-H	0.75	6-6 H8 / h7	M 2	1.02	0.30	0.10	0.26
2248-19-B6-8-AL-H	0.75	6-8 H8 / h7	M 2	1.02	0.30	0.10	0.26
2248-19-B8-8-AL-H	0.75	8-8 H8 / h7	M 2	1.02	0.30	0.10	0.26
2248-25-B6-6-AL-H	0.98	6-6 H8 / h7	M 2.5	1.26	0.37	0.13	0.35
2248-25-B6-8-AL-H	0.98	6-8 H8 / h7	M 2.5	1.26	0.37	0.13	0.35
2248-25-B6-10-AL-H	0.98	6-10 H8 / h7	M 2.5	1.26	0.37	0.13	0.35
2248-25-B8-8-AL-H	0.98	8-8 H8 / h7	M 2.5	1.26	0.37	0.13	0.35
2248-25-B8-10-AL-H	0.98	8-10 H8 / h7	M 2.5	1.26	0.37	0.13	0.35
2248-25-B10-10-AL-H	0.98	10-10 H8 / h7	M 2.5	1.26	0.37	0.13	0.35
2248-30-B8-8-AL-H	1.18	8-8 H8 / h7	M 3	1.42	0.43	0.16	0.43
2248-30-B8-10-AL-H	1.18	8-10 H8 / h7	M 3	1.42	0.43	0.16	0.43
2248-30-B8-12-AL-H	1.18	8-12 H8 / h7	M 3	1.42	0.43	0.16	0.43
2248-30-B10-10-AL-H	1.18	10-10 H8 / h7	M 3	1.42	0.43	0.16	0.43
2248-30-B10-12-AL-H	1.18	10-12 H8 / h7	M 3	1.42	0.43	0.16	0.43
2248-30-B12-12-AL-H	1.18	12-12 H8 / h7	M 3	1.42	0.43	0.16	0.43
2248-39-B12-12-AL-H	1.54	12-12 H8 / h7	M 4	1.89	0.61	0.18	0.57
2248-39-B12-14-AL-H	1.54	12-14 H8 / h7	M 4	1.89	0.61	0.18	0.57
2248-39-B12-16-AL-H	1.54	12-16 H8 / h7	M 4	1.89	0.61	0.18	0.57
2248-39-B14-14-AL-H	1.54	14-14 H8 / h7	M 4	1.89	0.61	0.18	0.57
2248-39-B14-16-AL-H	1.54	14-16 H8 / h7	M 4	1.89	0.61	0.18	0.57
2248-39-B16-16-AL-H	1.54	16-16 H8 / h7	M 4	1.89	0.61	0.18	0.57
2248-56-B20-20-AL-H	2.20	20-20 H8 / h7	M 5	2.36	0.77	0.22	0.79
2248-56-B20-25-AL-H	2.20	20-25 H8 / h7	M 5	2.36	0.77	0.22	0.79
2248-56-B25-25-AL-H	2.20	25-25 H8 / h7	M 5	2.36	0.77	0.22	0.79

Show / Hide columns

Metric

d₁	d₂ - d₃ H8 Recommended shaft tolerance h7						d₄	l₁	l₂ Max. shaft insertion depth	l₃	l₄

0.59	4-4	4-5	5-5	-	-	-	M 1.6	0.91	0.26	0.08	0.20
0.75	5-5	5-6	5-8	6-6	6-8	8-8	M 2	1.02	0.30	0.10	0.26
0.98	6-6	6-8	6-10	8-8	8-10	10-10	M 2.5	1.26	0.37	0.13	0.35
1.18	8-8	8-10	8-12	10-10	10-12	12-12	M 3	1.42	0.43	0.16	0.43
1.54	12-12	12-14	12-16	14-14	14-16	16-16	M 4	1.89	0.61	0.18	0.57
2.20	20-20	20-25	25-25	-	-	-	M 5	2.36	0.77	0.22	0.79

Show / Hide columns

d₁	Tightening torque of the screws in Nm ≈	Rated torque in Nm	Max. rotational speed (min^-1)	Moment of inertia in kgm²	Static torsional stiffness in Nm/rad	Max. shaft offset Lateral	Axial in mm	Angular in °

0.59	0.25	1.1	42000	2.3 x 10^{^-7}	43	0.01	± 0.2	1.5
0.75	0.5	2.1	33000	6.9 x 10^{^-7}	88	0.01	± 0.2	1.5
0.98	1	4	25000	2.5 x 10^{^-6}	140	0.01	± 0.2	1.5
1.18	1.5	6.3	21000	6 x 10^{^-6}	220	0.01	± 0.3	1.5
1.54	2.5	13.5	16000	2.3 x 10^{^-5}	520	0.01	± 0.3	1.5
2.20	7	35	11000	1.2 x 10^{^-4}	1500	0.01	± 0.3	1.5

Build & Price

Selected Part

Part Number

Total (net)

US$77.20

Call / Email for Delivery Time

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	4	US$77.20
5	9	US$70.76
10	24	US$64.33
≥ 25		US$57.90

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.019 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
