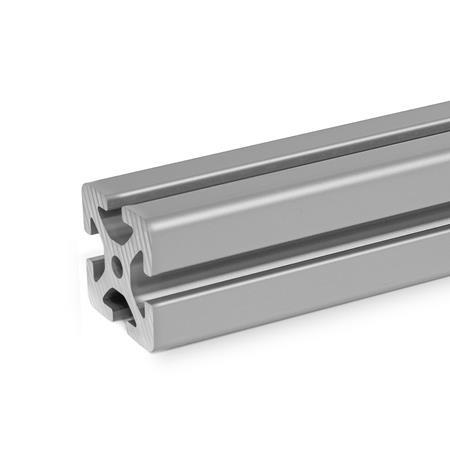

GN 10i Aluminum Profiles i-Modular System, with Open Slots on All Sides, Profile Type Heavy

Profile size: I-40408S
Finish: N - Anodized finish, natural color

i-Modular System (Item compatible)

Technical Data Leaflet - Aluminum Profiles

Product description

Aluminum profiles GN 10i are produced by extrusion molding. They can be used, for example, to easily construct protective enclosures, workplace equipment or jigs.

Aluminum profiles in combination with the removable and reusable accessories form a flexible modular system. Attachments can be fastened to either the slots or the end faces via the holes.

Aluminum profiles are supplied in bundles. The table shows the quantity included in each bundle.

Specification

Aluminum
Anodized finish, natural colorN

RoHS

Accessory

T-Nuts GN 50i
Cover Caps GN 60i
Cover and Edging Profiles GN 70i
Cover Profiles GN 71i
Support / Base Plates GN 80i

Hide technical drawing

Part Options / Table

Profile type

Heavy

Part Number	s₁	s₂	n	Length l +0.06 in in meters	Bundle Pieces	d	k	m	s₃	t	Grid size

10I-40168S-N-2-4	1.57	0.63	0.31	2 +0.06 in	4	0.20	-	1.10	0.18	0.48	1.57
10I-40408S-N-2-4	1.57	1.57	0.31	2 +0.06 in	4	0.27	-	-	0.18	0.48	1.57
10I-40808S-N-2-2	1.57	3.15	0.31	2 +0.06 in	2	0.27	1.57	-	0.18	0.48	1.57
10I-80808S-N-2-1	3.15	3.15	0.31	2 +0.06 in	1	0.27	1.57	-	0.18	0.48	1.57

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

s₁	s₂	n	Length l +0.06 in in meters	Bundle Pieces	d	k	m	s₃	t	Grid size

1.57	0.63	0.31	2	4	0.20	-	1.10	0.18	0.48	1.57
1.57	1.57	0.31	2	4	0.27	-	-	0.18	0.48	1.57
1.57	3.15	0.31	2	2	0.27	1.57	-	0.18	0.48	1.57
3.15	3.15	0.31	2	1	0.27	1.57	-	0.18	0.48	1.57

Build & Price

Selected Part

Part Number

Total (net)

US$366.37

Call / Email for Delivery Time

Bundle

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	4	US$366.37
5	9	US$335.84
10	24	US$305.31
≥ 25		US$274.78

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 19.753 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
