GN 474.3 Parallel Mounting Clamps with Adjustable Spindle Aluminum

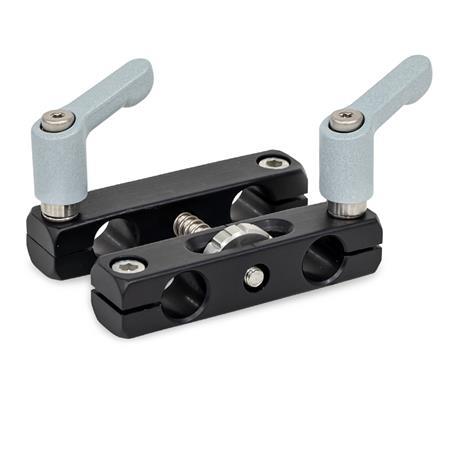

GN 474.3 Aluminum Parallel Mounting Clamps with Adjustable Spindle Type: K - With two adjustable levers and two socket cap screws
Finish: ELS - Anodized finish, black
Type: K - With two adjustable levers and two socket cap screws
Finish: ELS - Anodized finish, black
GN 474.3 Aluminum Parallel Mounting Clamps with Adjustable Spindle Type: K - With two adjustable levers and two socket cap screws
Finish: ELS - Anodized finish, black GN 474.3 Aluminum Parallel Mounting Clamps with Adjustable Spindle Type: K - With two adjustable levers and two socket cap screws
Finish: MT - Matte, tumbled finish GN 474.3 Aluminum Parallel Mounting Clamps with Adjustable Spindle Type: S - With four socket cap screws
Finish: ELS - Anodized finish, black GN 474.3 Aluminum Parallel Mounting Clamps with Adjustable Spindle Type: S - With four socket cap screws
Finish: MT - Matte, tumbled finish

Product description

Information

Parallel mounting clamps with adjustable spindle GN 474.3 are used for fine adjustments of measuring or test setups. The parallel clamp can be adjusted in 0.004 in (0.1 mm) increments using the coarse scaling on the circumference of the adjusting wheel.

When using Round Rods / Tubes GN 480.1 in type LS with longitudinal scale, their scale provides orientation during presetting.

Specification

Mounting clamp
Aluminum

  • Matte, tumbled finishMT
  • Anodized finish, blackELS

Adjustable levers (Type K)

  • Zinc die-cast
    Powder coated
    Silver RAL 9006, textured finish
  • Threaded stud / retaining screw
    Stainless steel AISI 303

Adjusting wheel
Stainless steel AISI 303


Thrust washer
Plastic


Socket cap screws DIN 912
Stainless steel AISI 304

  • 2x chemically blackened finish (Type S)
  • 2x plain finish (Type K / Type S)

Countersunk screw ISO 14581
Stainless steel AISI 304


Spring
Spring steel AISI 301


RoHS

Technical drawing

3D
Hide technical drawing
GN 474.3 Aluminum Parallel Mounting Clamps with Adjustable Spindle sketch

Part Options / Table

Type

KWith two adjustable levers and two socket cap screws
SWith four socket cap screws
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1
Bore for
shaft tol. -0.004
a
Stroke max.
d2d3d4hkl1
max.
l2l3l4m
B 80.470.75M 4M 40.930.551.572.320.530.871.26
B 120.710.83M 5M 51.260.631.972.870.671.181.54
B 160.941.02M 6M 61.380.792.523.580.811.771.97

Build & Price

3D Product Configurator
Bore d1
Type


Finish

Assembly Variants

As delivered

MD474.3_MT-45746-0

Clamping points inverted

Movable mounting clamp, angular and clamping point inverted

Fixed mounting clamp, angular and clamping point inverted

MD474.3_MT-48937-0 MD474.3_MT-48939-0 MD474.3_MT-48941-0

Application Example

MD474.3_AN-45812-0

Adjustment

MD474.3_KI-48580-0

Coarse scaling on adjusting wheel for adjustment in 0.004 in (1/10 mm) increments

Selected Part

Total US Dollars (net)
$88.49
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
19$88.49
1024$81.11
2549$73.74
≥ 50$66.37
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.202 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
