GN 490 Swivel Clamp Connector Joints Aluminum

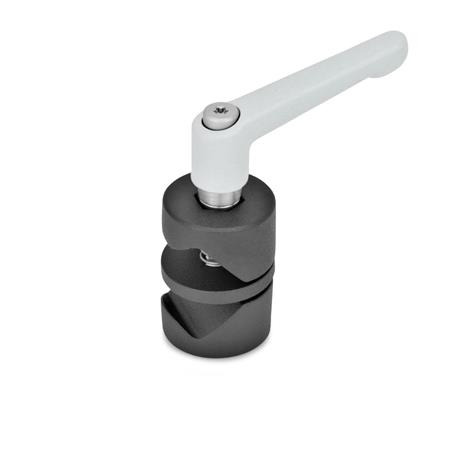

GN 490 Aluminum Swivel Clamp Connector Joints Type: B - With adjustable lever
Finish: SW - Black, RAL 9005, textured finish
Type: B - With adjustable lever
Finish: SW - Black, RAL 9005, textured finish
GN 490 Aluminum Swivel Clamp Connector Joints Type: B - With adjustable lever
Finish: SW - Black, RAL 9005, textured finish GN 490 Aluminum Swivel Clamp Connector Joints Type: A - With socket cap screw DIN 912
Finish: MT - Matte finish, tumbled finish GN 490 Aluminum Swivel Clamp Connector Joints Type: A - With socket cap screw DIN 912
Finish: SW - Black, RAL 9005, textured finish GN 490 Aluminum Swivel Clamp Connector Joints Type: B - With adjustable lever
Finish: MT - Matte finish, tumbled finish

Product description

Information

Swivel clamp connector joints GN 490, clamp rods or tubes via a V-groove, allowing a greater Ø tolerance to be bridged.

The compression spring makes clamping and releasing easier.

Specification

Body
Aluminum
  • Matte finish, tumbled finishMTMT
  • Powder coated
    Black, RAL 9005, textured finishSWSW

Socket cap screws DIN 912
Stainless steel AISI 304

Hex nuts DIN 934
Stainless steel AISI 304

Adjustable lever
  • Zinc die-cast
    Powder coated
    Silver, RAL 9006, textured finish
  • Insert / distance bushing
    Stainless steel AISI 303

RoHS compliant

Technical drawing

Hide technical drawing
GN 490 Aluminum Swivel Clamp Connector Joints sketch

Part Options / Table

Type

AWith socket cap screw DIN 912
BWith adjustable lever
Show / Hide columns

Metric

Dimensions in: Inch | Metric
d1
Clamping Ø
d2
Clamping Ø
d3
Thread
d4l1l2l3l4l5m
0.310.31M 61.101.301.381.770.550.200.51
0.390.39M 81.261.771.772.480.790.200.59
0.470.47M 81.421.851.772.480.830.200.67
0.550.55M 81.812.242.173.071.000.240.79
0.590.59M 101.812.242.173.071.000.240.83
0.630.63M 101.812.242.173.071.000.240.87
0.710.71M 102.202.482.173.071.120.240.94
0.790.79M 102.202.562.173.071.120.311.10

Build & Price

Clamping diameter d1
Clamping diameter d2
Type


Finish
MT
SW

Selected Part

Total US Dollars (net)
$27.13
In Stock: 4
In Stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
19$27.13
1024$24.87
2549$22.61
≥ 50$20.34
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.187 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.

CAD data

2D or 3D CAD files are not available to download at this time.

Please enter your e-mail address below and the files will be sent to you.


CAD Download Tutorial
Save as Favorites

Please enter the code above.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team

GN 490-16-16-A-MTGN 490-14-14-B-MTGN 490-18-18-B-SWGN 490-20-20-B-SWGN 490-18-18-A-SWGN 490-15-15-A-SWGN 490-12-12-B-SWGN 490-14-14-A-SWGN 490-10-10-B-SWGN 490-8-8-B-MTGN 490-12-12-A-MTGN 490-20-20-B-MTGN 490-8-8-B-SWGN 490-18-18-A-MTGN 490-12-12-B-MTGN 490-15-15-A-MTGN 490-14-14-B-SWGN 490-8-8-A-MTGN 490-16-16-A-SWGN 490-10-10-B-MTGN 490-10-10-A-MTGN 490-20-20-A-SWGN 490-15-15-B-SWGN 490-15-15-B-MTGN 490-16-16-B-MTGN 490-8-8-A-SWGN 490-16-16-B-SWGN 490-10-10-A-SWGN 490-18-18-B-MTGN 490-14-14-A-MTGN 490-20-20-A-MTGN 490-12-12-A-SW
