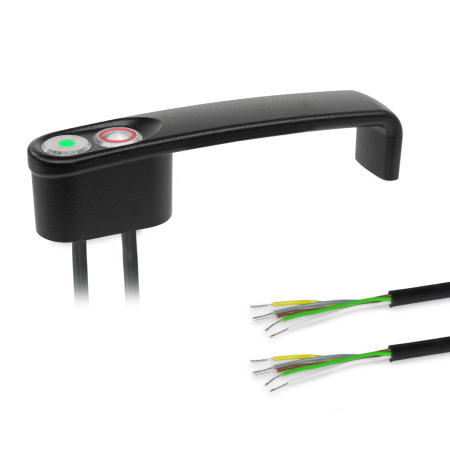

Cabinet U-Handles GN 422

Function element 1: LK - Indicator light LED, red / green (bi-color) (no switching function)
Function element 2: RK - Button, latching, with LED, red / green (bi-color)
Connection type: K5 - Cable, end open, 5 m
Finish: SW - Black, RAL 9005, textured finish

Operating Instruction GN 422 Load Capacity Information Plastic Characteristics

Product description

Cabinet U-handles GN 422 are used to operate covers and doors. The buttons integrated into the handle can send electrical control signals, and the LEDs can indicate the status of a machine control, for example.

The handle is available with either 1 or 2 function elements. The LEDs light up red or green depending on the polarity at the connections.

Complementary cabinet U-handles without switching function are available as GN 422.1.

Specification

Handle
Zinc die-cast
Powder coated

Black, RAL 9005, textured finishSW
Silver, RAL 9006, textured finishSR

Button / Indicator light housing
Stainless steel AISI 304

Cable (outer sheath)
Polyurethan (PUR)
Black

Light guide
Plastic
Crystal clear Polycarbonate (PC)

RoHS

Accessory

GN 330 Cables with Connector Coupling (5-pole, 5 or 10 meters long)

GN 422 Zinc Die-Cast Cabinet U-Handles, with Power Switching Function / with Indicator Light, with Two Function Elements sketch

Hide technical drawing

Part Options / Table

Function element 1

LK	Indicator light LED, red / green (bi-color) (no switching function)
RK	Button, latching, with LED, red / green (bi-color)
RO	Button, latching, without LED
TK	Button, with LED, red / green (bi-color)
TO	Button, without LED

Function element 2

LK	Indicator light LED, red / green (bi-color) (no switching function)
RK	Button, latching, with LED, red / green (bi-color)
RO	Button, latching, without LED
TK	Button, with LED, red / green (bi-color)
TO	Button, without LED

Connection type

K2	Cable, end open, 2 m
K5	Cable, end open, 5 m
S025	Cable with plug, 0.25 m

Part Number K2 - Cable, end open, 2 m	Part Number K5 - Cable, end open, 5 m	Part Number S025 - Cable with plug, 0.25 m	b	a	d	h	l₁	l₂	l₃	t

422-33-LK-LK-K2-SW	422-33-LK-LK-K5-SW	422-33-LK-LK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-LK-K2-SR	422-33-LK-LK-K5-SR	422-33-LK-LK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-RK-K2-SW	422-33-LK-RK-K5-SW	422-33-LK-RK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-RK-K2-SR	422-33-LK-RK-K5-SR	422-33-LK-RK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-RO-K2-SW	422-33-LK-RO-K5-SW	422-33-LK-RO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-RO-K2-SR	422-33-LK-RO-K5-SR	422-33-LK-RO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-TK-K2-SW	422-33-LK-TK-K5-SW	422-33-LK-TK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-TK-K2-SR	422-33-LK-TK-K5-SR	422-33-LK-TK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-TO-K2-SW	422-33-LK-TO-K5-SW	422-33-LK-TO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-LK-TO-K2-SR	422-33-LK-TO-K5-SR	422-33-LK-TO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47

Part Number K2 - Cable, end open, 2 m	Part Number K5 - Cable, end open, 5 m	Part Number S025 - Cable with plug, 0.25 m	b	a	d	h	l₁	l₂	l₃	t

422-33-RK-LK-K2-SW	422-33-RK-LK-K5-SW	422-33-RK-LK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-LK-K2-SR	422-33-RK-LK-K5-SR	422-33-RK-LK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-RK-K2-SW	422-33-RK-RK-K5-SW	422-33-RK-RK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-RK-K2-SR	422-33-RK-RK-K5-SR	422-33-RK-RK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-RO-K2-SW	422-33-RK-RO-K5-SW	422-33-RK-RO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-RO-K2-SR	422-33-RK-RO-K5-SR	422-33-RK-RO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-TK-K2-SW	422-33-RK-TK-K5-SW	422-33-RK-TK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-TK-K2-SR	422-33-RK-TK-K5-SR	422-33-RK-TK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-TO-K2-SW	422-33-RK-TO-K5-SW	422-33-RK-TO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RK-TO-K2-SR	422-33-RK-TO-K5-SR	422-33-RK-TO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47

Part Number K2 - Cable, end open, 2 m	Part Number K5 - Cable, end open, 5 m	Part Number S025 - Cable with plug, 0.25 m	b	a	d	h	l₁	l₂	l₃	t

422-33-RO-LK-K2-SW	422-33-RO-LK-K5-SW	422-33-RO-LK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-LK-K2-SR	422-33-RO-LK-K5-SR	422-33-RO-LK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-RK-K2-SW	422-33-RO-RK-K5-SW	422-33-RO-RK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-RK-K2-SR	422-33-RO-RK-K5-SR	422-33-RO-RK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-RO-K2-SW	422-33-RO-RO-K5-SW	422-33-RO-RO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-RO-K2-SR	422-33-RO-RO-K5-SR	422-33-RO-RO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-TK-K2-SW	422-33-RO-TK-K5-SW	422-33-RO-TK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-TK-K2-SR	422-33-RO-TK-K5-SR	422-33-RO-TK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-TO-K2-SW	422-33-RO-TO-K5-SW	422-33-RO-TO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-RO-TO-K2-SR	422-33-RO-TO-K5-SR	422-33-RO-TO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47

Part Number K2 - Cable, end open, 2 m	Part Number K5 - Cable, end open, 5 m	Part Number S025 - Cable with plug, 0.25 m	b	a	d	h	l₁	l₂	l₃	t

422-33-TK-LK-K2-SW	422-33-TK-LK-K5-SW	422-33-TK-LK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-LK-K2-SR	422-33-TK-LK-K5-SR	422-33-TK-LK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-RK-K2-SW	422-33-TK-RK-K5-SW	422-33-TK-RK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-RK-K2-SR	422-33-TK-RK-K5-SR	422-33-TK-RK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-RO-K2-SW	422-33-TK-RO-K5-SW	422-33-TK-RO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-RO-K2-SR	422-33-TK-RO-K5-SR	422-33-TK-RO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-TK-K2-SW	422-33-TK-TK-K5-SW	422-33-TK-TK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-TK-K2-SR	422-33-TK-TK-K5-SR	422-33-TK-TK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-TO-K2-SW	422-33-TK-TO-K5-SW	422-33-TK-TO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TK-TO-K2-SR	422-33-TK-TO-K5-SR	422-33-TK-TO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47

Part Number K2 - Cable, end open, 2 m	Part Number K5 - Cable, end open, 5 m	Part Number S025 - Cable with plug, 0.25 m	b	a	d	h	l₁	l₂	l₃	t

422-33-TO-LK-K2-SW	422-33-TO-LK-K5-SW	422-33-TO-LK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-LK-K2-SR	422-33-TO-LK-K5-SR	422-33-TO-LK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-RK-K2-SW	422-33-TO-RK-K5-SW	422-33-TO-RK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-RK-K2-SR	422-33-TO-RK-K5-SR	422-33-TO-RK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-RO-K2-SW	422-33-TO-RO-K5-SW	422-33-TO-RO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-RO-K2-SR	422-33-TO-RO-K5-SR	422-33-TO-RO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-TK-K2-SW	422-33-TO-TK-K5-SW	422-33-TO-TK-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-TK-K2-SR	422-33-TO-TK-K5-SR	422-33-TO-TK-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-TO-K2-SW	422-33-TO-TO-K5-SW	422-33-TO-TO-S025-SW	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47
422-33-TO-TO-K2-SR	422-33-TO-TO-K5-SR	422-33-TO-TO-S025-SR	1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47

Show / Hide columns

Metric

b	a	d	h	l₁	l₂	l₃	t

1.30	0.40	M 6	1.73	4.61	7.15	4.15	0.47

Build & Price

Electrical and Mechanical Characteristics


Button Contacts Contact material Switching voltages Switching current Mechanical lifespan Electrical lifespan	Changeover contact, snap contact Silver alloy Max. 125 V (connector) Max. 240 V (cable) Max. 3A 10⁶ switching cycles 50,000 switching cycles (under full load)
LED indicator light / LED ring lighting Operating voltage / operating current bi-color (red / green)	24 V DC ± 10 % / 7 mA
Category of use (button)	AC 15: 24 V AC / 1 A / DC 13: 24 V DC / 0.7 A AC 15: 110 V AC / 1 A / DC 13: 110 V DC / 0.2 A AC 15: 220 V AC / 0.5 A / DC 13: 220 V DC / 0.1 A	according to IEC 60947-5-1
	AC: 120 V AC / 5 A / DC: 12 V DC / 1 A AC: 240 V AC / 3 A	according to UL 508
Connection type Cable with open end (K2 / K5)	PUR cable with open stranded wires (2 m or 5 m)
Approvals, conformity declarations

Installation Holes

The holes must be free of burrs to prevent damage to the cable.

Security Information

The information in the operating instruction must be observed during installation, initial operation, and use. It is enclosed with the product and is provided digitally on the product page at jwwinco.com

Selected Part

Part Number

Total (net)

US$261.52

Call / Email for Delivery Time

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	9	US$261.52
10	24	US$239.73
25	49	US$217.94
≥ 50		US$196.14

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 1.741 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
