GN 613 Indexing Plungers Stainless Steel, Non Lock-Out, with Fully Threaded Body

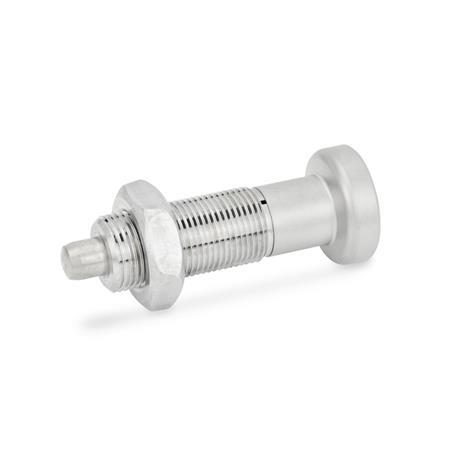

GN 613 Stainless Steel Indexing Plungers, Non Lock-Out, with Fully Threaded Body Material: NI - Stainless steel
Type: AKN - With stainless steel knob, with lock nut
Material: NI - Stainless steel
Type: AKN - With stainless steel knob, with lock nut
GN 613 Stainless Steel Indexing Plungers, Non Lock-Out, with Fully Threaded Body Material: NI - Stainless steel
Type: AKN - With stainless steel knob, with lock nut GN 613 Stainless Steel Indexing Plungers, Non Lock-Out, with Fully Threaded Body Material: NI - Stainless steel
Type: AN - With stainless steel knob, without lock nut

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

GN 613 indexing plungers are a low cost alternative with reduced dimensions.

Due to the indexing plunger being completely made of stainless steel parts, they are a good choice for use in corrosion free environments.

GN 613.1 installation tools, available as accessory, reduce the installation time and make it easier to counter hold the plunger during the assembly. The tool is inserted laterally between the knob and the threaded body and engages in the slot provided.

Specification

Threaded body
Stainless steelNI
European Standard No. 1.4305 (AISI 303)

Plunger pin
Stainless steel
European Standard No. 1.4305 (AISI 303)
Chemically nickel plated

Knob
Stainless steel
European Standard No. 1.4305 (AISI 303)
Not removable

Lock nut
DIN 439 B / ISO 8675
Stainless steel (A2)





RoHS compliant

Accessory

Installation tools GN 613.1
(Part number, see table)

Technical drawing

3D
Hide technical drawing
GN 613 Stainless Steel Indexing Plungers, Non Lock-Out, with Fully Threaded Body sketch

Part Options / Table

Type

ANWith stainless steel knob, without lock nut
AKNWith stainless steel knob, with lock nut
Show / Hide columns

Metric

Dimensions in: Inch | Metric
d1
Pin -0.001/-0.002
Bore +0.001
d2
Thread
d3l1l2l3Spring load ≈
Initial

End
Part number
installation tool
0.20M 10 x 10.831.770.200.871.35 lbf (6 N)3.37 lbf (15 N)F99/5
0.24M 12 x 1.50.982.150.241.021.80 lbf (8 N)4.72 lbf (21 N)F99/6
0.31M 16 x 1.51.222.720.311.342.02 lbf (9 N)5.85 lbf (26 N)F99/8
0.39M 20 x 1.51.223.150.391.693.82 lbf (17 N)8.99 lbf (40 N)F99/10

Build & Price

3D Product Configurator
Pin diameter d1
Type


Material

Selected Part

Total US Dollars (net)
$23.14
In stock: 7
In stock
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$23.14
100249$21.21
250499$19.29
≥ 500$17.36
Prop 65: -
Please contact our Sales Department for more information: 800-877-8351
RoHS: Compliant
This article conforms to RoHS, which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.088 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
