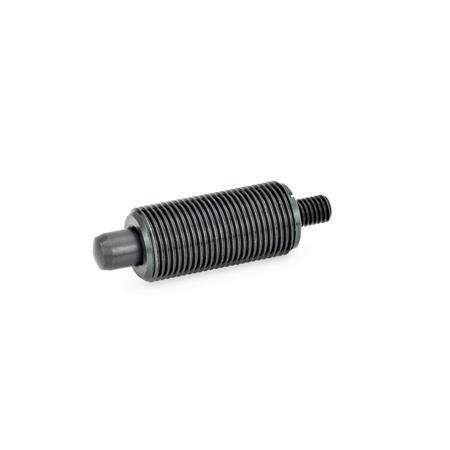

GN 613 Steel Indexing Plungers, with Plastic Knob, Non Lock-Out, with Fully Threaded Body

Part Number A - With knob, without lock nut	Part Number AK - With knob, with lock nut	Part Number G - With threaded stem, without lock nut	Part Number GK - With threaded stem, with lock nut	d₁ Pin -0.001/-0.002 Bore +0.001	d₂ Thread	d₃	d₄ Thread	l₁	l₂	l₃	l₄	l₅	Spring load ≈ Initial	End

F90/A	F90/AK	F90/G	F90/GK	0.20	M 10 x 1	0.83	M 5	1.77	0.20	0.87	0.24	0.18	1.57 lbf (7 N)	3.82 lbf (17 N)
F91/A	F91/AK	F91/G	F91/GK	0.24	M 12 x 1.5	0.98	M 6	2.15	0.24	1.02	0.39	0.31	2.02 lbf (9 N)	5.40 lbf (24 N)
F92/A	F92/AK	F92/G	F92/GK	0.31	M 16 x 1.5	1.22	M 8	2.72	0.31	1.34	0.47	0.39	2.47 lbf (11 N)	6.74 lbf (30 N)
F93/A	F93/AK	F93/G	F93/GK	0.39	M 20 x 1.5	1.22	M 8	3.15	0.39	1.69	0.47	0.47	4.27 lbf (19 N)	10.12 lbf (45 N)

d₁ Pin -0.001/-0.002 Bore +0.001	d₂ Thread	d₃	d₄ Thread	l₁	l₂	l₃	l₄	l₅	Spring load ≈ Initial	End	Part number installation tool

0.20	M 10 x 1	0.83	M 5	1.77	0.20	0.87	0.24	0.18	1.57 lbf (7 N)	3.82 lbf (17 N)	F99/5
0.24	M 12 x 1.5	0.98	M 6	2.15	0.24	1.02	0.39	0.31	2.02 lbf (9 N)	5.40 lbf (24 N)	F99/6
0.31	M 16 x 1.5	1.22	M 8	2.72	0.31	1.34	0.47	0.39	2.47 lbf (11 N)	6.74 lbf (30 N)	F99/8
0.39	M 20 x 1.5	1.22	M 8	3.15	0.39	1.69	0.47	0.47	4.27 lbf (19 N)	10.12 lbf (45 N)	F99/10

Selected Part

Part Number

Total US Dollars (net)

$8.00

In stock: 17

In stock

Quantity

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	99	$8.00
100	249	$7.33
250	499	$6.67
≥ 500		$6.00
