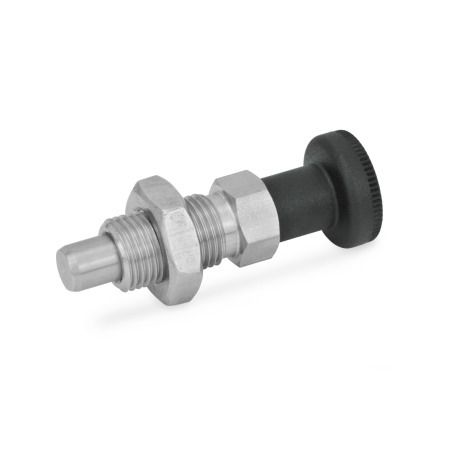

Indexing Plungers GN 717

Type: BK - Non lock-out, with lock nut
Material: NI - Stainless steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 717 Print This Page List of Indexing Plunger Types Load Rating Information Stainless Steel Characteristics Plastic Characteristics Metric ISO Threads DIN 13 Metric ISO Fine Threads DIN 13

Product description

GN 717 indexing plungers are characterized by small dimensions. These indexing plungers are universally suitable due to their prevention of misalignments and positioning errors of mating indexing bores.

Lock-out types C / CK are used for applications where the plunger pin needs to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in the retracted position.

During assembly, the maximum tightening torques shown in the table should not be exceeded when securing the lock nut.

Specification

Threaded body
Stainless steelNI AISI 303

Plunger pin
Stainless steel AISI 303

Spring
Stainless steel AISI 301

Knob
Plastic
Technopolymer (Polyamide PA)

Temperature resistant up to 230 °F (110 °C)
Black, matte finish
Not removable

Lock nut

Inch size
ANSI/ASME B18.2.2
Stainless steel (A2)
Metric size
DIN 439 B / ISO 4035 / ISO 8675
Stainless steel (A2)

RoHS

Selected Part

Part Number B - Non lock-out, without lock nut	Part Number BK - Non lock-out, with lock nut	Part Number C - Lock-out, without lock nut	Part Number CK - Lock-out, with lock nut	d₁ Pin -0.002 Bore +0.001/+0.003	d₂ Thread	d₄	e	l₁	l₂	l₃	l₄	l₅ min.	l₆	l₇	A/F	Max. tightening torque in Nm	Spring load ≈ Initial	End


717-5-3/8X16-B-NI	717-5-3/8X16-BK-NI	717-5-3/8X16-C-NI	717-5-3/8X16-CK-NI	0.20 -0.002 / +0.001/+0.003	3/8 x 16	0.71	0.45	1.67	0.20	0.63	0.24	0.53	1.81	0.37	0.39	22	1.12 lbf (5 N)	5.40 lbf (24 N)
717-6-1/2X13-B-NI	717-6-1/2X13-BK-NI	717-6-1/2X13-C-NI	717-6-1/2X13-CK-NI	0.24 -0.002 / +0.001/+0.003	1/2 x 13	0.83	0.54	2.05	0.24	0.79	0.30	0.65	2.17	0.41	0.47	38	1.12 lbf (5 N)	4.72 lbf (21 N)
717-8-5/8X11-B-NI	717-8-5/8X11-BK-NI	717-8-5/8X11-C-NI	717-8-5/8X11-CK-NI	0.31 -0.002 / +0.001/+0.003	5/8 x 11	0.98	0.77	2.50	0.31	0.94	0.35	0.81	2.68	0.53	0.67	80	1.35 lbf (6 N)	4.95 lbf (22 N)
717-10-5/8X11-B-NI	717-10-5/8X11-BK-NI	717-10-5/8X11-C-NI	717-10-5/8X11-CK-NI	0.39 -0.002 / +0.001/+0.003	5/8 x 11	0.98	0.77	2.66	0.39	1.02	0.35	0.89	2.85	0.55	0.67	80	0.90 lbf (4 N)	6.07 lbf (27 N)
717-3-M6-B-NI	717-3-M6-BK-NI	717-3-M6-C-NI	717-3-M6-CK-NI	0.12 -0.002 / +0.001/+0.003	M 6	0.47	0.27	1.18	0.14	0.47	0.18	0.39	1.28	0.28	0.24	2	0.67 lbf (3 N)	2.70 lbf (12 N)
717-3-M6X0.75-B-NI	717-3-M6X0.75-BK-NI	717-3-M6X0.75-C-NI	717-3-M6X0.75-CK-NI	0.12 -0.002 / +0.001/+0.003	M 6 x 0.75	0.47	0.27	1.18	0.14	0.47	0.18	0.39	1.28	0.28	0.24	3	0.67 lbf (3 N)	2.70 lbf (12 N)
717-4-M6-B-NI	717-4-M6-BK-NI	717-4-M6-C-NI	717-4-M6-CK-NI	0.16 -0.002 / +0.001/+0.003	M 6	0.47	0.27	1.20	0.16	0.47	0.18	0.39	1.30	0.28	0.24	2	0.67 lbf (3 N)	2.70 lbf (12 N)
717-4-M8X1-B-NI	717-4-M8X1-BK-NI	717-4-M8X1-C-NI	717-4-M8X1-CK-NI	0.16 -0.002 / +0.001/+0.003	M 8 x 1	0.63	0.36	1.56	0.18	0.63	0.24	0.53	1.69	0.37	0.31	8	1.12 lbf (5 N)	5.40 lbf (24 N)
717-5-M8-B-NI	717-5-M8-BK-NI	717-5-M8-C-NI	717-5-M8-CK-NI	0.20 -0.002 / +0.001/+0.003	M 8	0.63	0.36	1.57	0.20	0.63	0.24	0.53	1.71	0.37	0.31	7	1.12 lbf (5 N)	5.40 lbf (24 N)
717-5-M8X1-B-NI	717-5-M8X1-BK-NI	717-5-M8X1-C-NI	717-5-M8X1-CK-NI	0.20 -0.002 / +0.001/+0.003	M 8 x 1	0.63	0.36	1.57	0.20	0.63	0.24	0.53	1.71	0.37	0.31	7	1.12 lbf (5 N)	5.40 lbf (24 N)
717-5-M10X1-B-NI	717-5-M10X1-BK-NI	717-5-M10X1-C-NI	717-5-M10X1-CK-NI	0.20 -0.002 / +0.001/+0.003	M 10 x 1	0.71	0.45	1.67	0.20	0.63	0.24	0.53	1.81	0.37	0.39	22	1.12 lbf (5 N)	5.40 lbf (24 N)
717-6-M10-B-NI	717-6-M10-BK-NI	717-6-M10-C-NI	717-6-M10-CK-NI	0.24 -0.002 / +0.001/+0.003	M 10	0.71	0.45	1.93	0.24	0.79	0.30	0.67	2.05	0.41	0.39	15	1.12 lbf (5 N)	4.72 lbf (21 N)
717-6-M12X1.5-B-NI	717-6-M12X1.5-BK-NI	717-6-M12X1.5-C-NI	717-6-M12X1.5-CK-NI	0.24 -0.002 / +0.001/+0.003	M 12 x 1.5	0.83	0.54	2.05	0.24	0.79	0.30	0.65	2.17	0.41	0.47	38	1.12 lbf (5 N)	4.72 lbf (21 N)
717-8-M12-B-NI	717-8-M12-BK-NI	717-8-M12-C-NI	717-8-M12-CK-NI	0.31 -0.002 / +0.001/+0.003	M 12	0.83	0.54	2.32	0.31	0.94	0.35	0.81	2.50	0.53	0.47	20	1.35 lbf (6 N)	4.95 lbf (22 N)
717-8-M12X1.5-B-NI	717-8-M12X1.5-BK-NI	717-8-M12X1.5-C-NI	717-8-M12X1.5-CK-NI	0.31 -0.002 / +0.001/+0.003	M 12 x 1.5	0.83	0.54	2.32	0.31	0.94	0.35	0.81	2.50	0.53	0.47	20	1.35 lbf (6 N)	4.95 lbf (22 N)
717-8-M16X1.5-B-NI	717-8-M16X1.5-BK-NI	717-8-M16X1.5-C-NI	717-8-M16X1.5-CK-NI	0.31 -0.002 / +0.001/+0.003	M 16 x 1.5	0.98	0.77	2.50	0.31	0.94	0.35	0.81	2.68	0.53	0.67	80	1.35 lbf (6 N)	4.95 lbf (22 N)
717-10-M16X1.5-B-NI	717-10-M16X1.5-BK-NI	717-10-M16X1.5-C-NI	717-10-M16X1.5-CK-NI	0.39 -0.002 / +0.001/+0.003	M 16 x 1.5	0.98	0.77	2.66	0.39	1.02	0.35	0.89	2.85	0.55	0.67	80	0.90 lbf (4 N)	6.07 lbf (27 N)

d₁ Pin -0.002 Bore +0.001/+0.003	d₂ Thread	d₄	e	l₁	l₂	l₃	l₄	l₅ min.	l₆	l₇	A/F	Max. tightening torque in Nm	Spring load ≈ Initial	End

0.20	3/8 x 16	0.71	0.45	1.67	0.20	0.63	0.24	0.53	1.81	0.37	0.39	22	1.12 lbf (5 N)	5.40 lbf (24 N)
0.24	1/2 x 13	0.83	0.54	2.05	0.24	0.79	0.30	0.65	2.17	0.41	0.47	38	1.12 lbf (5 N)	4.72 lbf (21 N)
0.31	5/8 x 11	0.98	0.77	2.50	0.31	0.94	0.35	0.81	2.68	0.53	0.67	80	1.35 lbf (6 N)	4.95 lbf (22 N)
0.39	5/8 x 11	0.98	0.77	2.66	0.39	1.02	0.35	0.89	2.85	0.55	0.67	80	0.90 lbf (4 N)	6.07 lbf (27 N)

d₁ Pin -0.002 Bore +0.001/+0.003	d₂ Thread	d₄	e	l₁	l₂	l₃	l₄	l₅ min.	l₆	l₇	A/F	Max. tightening torque in Nm	Spring load ≈ Initial	End

0.12	M 6	0.47	0.27	1.18	0.14	0.47	0.18	0.39	1.28	0.28	0.24	2	0.67 lbf (3 N)	2.70 lbf (12 N)
0.12	M 6 x 0.75	0.47	0.27	1.18	0.14	0.47	0.18	0.39	1.28	0.28	0.24	3	0.67 lbf (3 N)	2.70 lbf (12 N)
0.16	M 6	0.47	0.27	1.20	0.16	0.47	0.18	0.39	1.30	0.28	0.24	2	0.67 lbf (3 N)	2.70 lbf (12 N)
0.16	M 8 x 1	0.63	0.36	1.56	0.18	0.63	0.24	0.53	1.69	0.37	0.31	8	1.12 lbf (5 N)	5.40 lbf (24 N)
0.20	M 8	0.63	0.36	1.57	0.20	0.63	0.24	0.53	1.71	0.37	0.31	7	1.12 lbf (5 N)	5.40 lbf (24 N)
0.20	M 8 x 1	0.63	0.36	1.57	0.20	0.63	0.24	0.53	1.71	0.37	0.31	7	1.12 lbf (5 N)	5.40 lbf (24 N)
0.20	M 10 x 1	0.71	0.45	1.67	0.20	0.63	0.24	0.53	1.81	0.37	0.39	22	1.12 lbf (5 N)	5.40 lbf (24 N)
0.24	M 10	0.71	0.45	1.93	0.24	0.79	0.30	0.67	2.05	0.41	0.39	15	1.12 lbf (5 N)	4.72 lbf (21 N)
0.24	M 12 x 1.5	0.83	0.54	2.05	0.24	0.79	0.30	0.65	2.17	0.41	0.47	38	1.12 lbf (5 N)	4.72 lbf (21 N)
0.31	M 12	0.83	0.54	2.32	0.31	0.94	0.35	0.81	2.50	0.53	0.47	20	1.35 lbf (6 N)	4.95 lbf (22 N)
0.31	M 12 x 1.5	0.83	0.54	2.32	0.31	0.94	0.35	0.81	2.50	0.53	0.47	20	1.35 lbf (6 N)	4.95 lbf (22 N)
0.31	M 16 x 1.5	0.98	0.77	2.50	0.31	0.94	0.35	0.81	2.68	0.53	0.67	80	1.35 lbf (6 N)	4.95 lbf (22 N)
0.39	M 16 x 1.5	0.98	0.77	2.66	0.39	1.02	0.35	0.89	2.85	0.55	0.67	80	0.90 lbf (4 N)	6.07 lbf (27 N)

Part Number

Total (net)

US$9.20

In Stock: 147

In Stock

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	99	US$9.20
100	249	US$8.43
250	499	US$7.67
≥ 500		US$6.90

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.044 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
