GN 617.1 Indexing Plungers Stainless Steel, Lock-Out


Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Standard Sheet GN 617.1 Print This Page List of Indexing Plunger Types Load Rating Information ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Information

GN 617.1 indexing plungers with lock-out are used for applications where the plunger pin needs to stay in its retracted position. To achieve this, the knob is rotated by 90 degrees after being retracted. A notch keeps the plunger in the retracted position.

Due to the indexing plunger being completely made of stainless steel parts, they are a good choice for use in corrosion free environments.

Specification

Threaded body
Stainless steelNI AISI 303

Plunger pin
Stainless steel AISI 303
Chemically nickel plated

Knob
Stainless steel
European Standard No. 1.4305 (AISI 303)
Not removable

Lock nut

Inch size
18-8 Stainless steel (A2)
Metric size
DIN 439 B / ISO 8675
Stainless steel (A2)

RoHS compliant

Technical drawing

GN 617.1 Stainless Steel Indexing Plungers, Lock-Out sketch

Hide technical drawing

Part Options / Table

Type

AN	With stainless steel knob, without lock nut

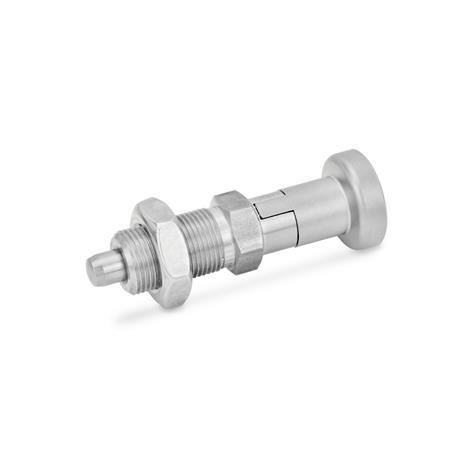

AKN	With stainless steel knob, with lock nut

Part Number AN - With stainless steel knob, without lock nut	Part Number AKN - With stainless steel knob, with lock nut	d₁ Pin -0.001/-0.002 Bore +0.001	d₂ Thread	d₃	e	l₁ ≈	l₂	l₃	l₄	l₅ min.	A/F	Spring load ≈ Initial	End

617.1-5-3/8X24-AN-NI	617.1-5-3/8X24-AKN-NI	0.20	3/8 x 24	0.83	0.54	2.01	0.20	0.67	0.20	0.59	0.47	1.35 lbf (6 N)	3.37 lbf (15 N)
617.1-6-1/2X13-AN-NI	617.1-6-1/2X13-AKN-NI	0.24	1/2 x 13	0.98	0.64	2.40	0.24	0.79	0.24	0.67	0.55	1.80 lbf (8 N)	4.72 lbf (21 N)
617.1-8-5/8X11-AN-NI	617.1-8-5/8X11-AKN-NI	0.31	5/8 x 11	1.22	0.86	2.97	0.28	1.02	0.31	0.83	0.75	2.02 lbf (9 N)	5.85 lbf (26 N)
617.1-5-M10X1-AN-NI	617.1-5-M10X1-AKN-NI	0.20	M 10 x 1	0.83	0.54	2.01	0.20	0.67	0.20	0.59	0.47	1.35 lbf (6 N)	3.37 lbf (15 N)
617.1-6-M12X1.5-AN-NI	617.1-6-M12X1.5-AKN-NI	0.24	M 12 x 1.5	0.98	0.64	2.40	0.24	0.79	0.24	0.67	0.55	1.80 lbf (8 N)	4.72 lbf (21 N)
617.1-8-M16X1.5-AN-NI	617.1-8-M16X1.5-AKN-NI	0.31	M 16 x 1.5	1.22	0.86	2.97	0.28	1.02	0.31	0.91	0.75	2.02 lbf (9 N)	5.85 lbf (26 N)
617.1-10-M20X1.5-AN-NI	617.1-10-M20X1.5-AKN-NI	0.39	M 20 x 1.5	1.22	1.00	3.58	0.39	1.30	0.39	1.18	0.87	3.82 lbf (17 N)	8.99 lbf (40 N)

Show / Hide columns

Inch

Dimensions in: Inch (change to Metric)

d₁ Pin -0.001/-0.002 Bore +0.001	d₂ Thread	d₃	e	l₁ ≈	l₂	l₃	l₄	l₅ min.	A/F	Spring load ≈ Initial	End

0.20	3/8 x 24	0.83	0.54	2.01	0.20	0.67	0.20	0.59	0.47	1.35 lbf (6 N)	3.37 lbf (15 N)
0.24	1/2 x 13	0.98	0.64	2.40	0.24	0.79	0.24	0.67	0.55	1.80 lbf (8 N)	4.72 lbf (21 N)
0.31	5/8 x 11	1.22	0.86	2.97	0.28	1.02	0.31	0.83	0.75	2.02 lbf (9 N)	5.85 lbf (26 N)

Show / Hide columns

Metric

Dimensions in: Inch | Metric

d₁ Pin -0.001/-0.002 Bore +0.001	d₂ Thread	d₃	e	l₁ ≈	l₂	l₃	l₄	l₅ min.	A/F	Spring load ≈ Initial	End

0.20	M 10 x 1	0.83	0.54	2.01	0.20	0.67	0.20	0.59	0.47	1.35 lbf (6 N)	3.37 lbf (15 N)
0.24	M 12 x 1.5	0.98	0.64	2.40	0.24	0.79	0.24	0.67	0.55	1.80 lbf (8 N)	4.72 lbf (21 N)
0.31	M 16 x 1.5	1.22	0.86	2.97	0.28	1.02	0.31	0.91	0.75	2.02 lbf (9 N)	5.85 lbf (26 N)
0.39	M 20 x 1.5	1.22	1.00	3.58	0.39	1.30	0.39	1.18	0.87	3.82 lbf (17 N)	8.99 lbf (40 N)
