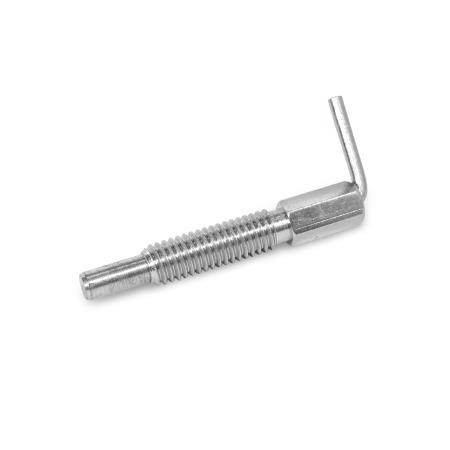

LHRP Hand Retractable Spring Plungers Steel, With L Handle, Non Lock-Out Type


Product description


These L-handle hand retractable spring plungers offer varied pin lengths extending the positioning range of depth.


Plunger body
Low carbon steel, zinc plated

Plunger pin
Case hardened steel, zinc plated
Available with or without nylon sealing patch

RoHS compliant

Technical drawing

Hide technical drawing
LHRP Steel Hand Retractable Spring Plungers, With L Handle, Non Lock-Out Type sketch

Part Options / Table


STPSteel with patch
Show / Hide columns


Dimensions in: Inch (change to Metric)
load ≈

.16*1/4 x lbf (.53 N).50 lbf (2.22 N)
.16*1/4 x lbf (2.22 N)2.50 lbf (11.12 N)
.253/8 x lbf (1.11 N)1.25 lbf (5.56 N)
.253/8 x 162.00.561. lbf (3.34 N)3.75 lbf (16.68 N)
.311/2 x 131.50.401. lbf (2.22 N)2.00 lbf (8.90 N)
.311/2 x 132.11.751. lbf (4.45 N)5.00 lbf (22.24 N)
.385/8 x 111.88.501. lbf (3.34 N)2.50 lbf (11.12 N)
.385/8 x lbf (4.45 N)5.00 lbf (22.24 N)
* No thread relief

Build & Price

Pin diameter d1
Thread d2
Length l1

Selected Part

Total USD (net)
In stock: 151
In stock
Please note our quantity discounts (USD).
≥ 500$6.62
Weight: 0.012 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
