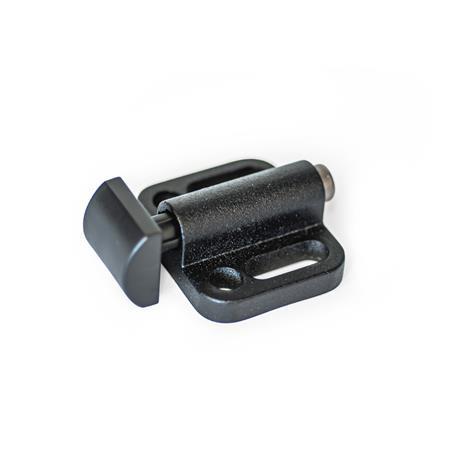

Side thrust pins GN 415 have a compact design and offer maximum flexibility when tensioning and holding parts. A variety of thrust pin designs as well as two different spring forces are available.
Depending on the installation position, these side thrust pins offer a pull-down effect operating within height h2. They are fastened by means of bores or slotted holes.
The side thrust pins are delivered fully assembled. If necessary, the installation position of the thrust pin slide can be rotated by 4x90° according to the sketch. When installing version KG, the shaped thread in the plastic slide should be reused and the tightening torque limited.
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.023 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight. Phone: 800-877-8351
