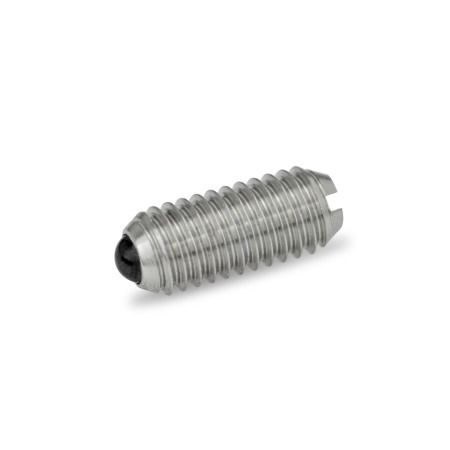

GN 615.5 Ball Plungers Stainless Steel A4, with Ceramic Ball, with Slot


GN 615.5 Stainless Steel A4 Ball Plungers, with Ceramic Ball, with Slot Type: KN - Stainless steel A4, standard spring load
Type: KN - Stainless steel A4, standard spring load
GN 615.5 Stainless Steel A4 Ball Plungers, with Ceramic Ball, with Slot Type: KN - Stainless steel A4, standard spring load GN 615.5 Stainless Steel A4 Ball Plungers, with Ceramic Ball, with Slot Type: KSN - Stainless steel A4, high spring load
Stainless-Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

GN 615.5 ball plungers are used as locating devices, detent pins, pressure pins and ejectors. A typical example is push-on / push-off applications.

Ball plungers mounted in various control levers are also perfect solutions for snap-indexing mechanism applications.

Due to the selection of materials, the stainless steel ball plungers are suitable for use in highly corrosive environments. In addition the ceramic ball is low wearing, anti-magnetic and an electrically insulating material.

Specification

Housing
Stainless steel
European Standard No. 1.4404 (AISI 316L)

Ball
Ceramic
Silicon nitride, black

Spring
Stainless steel
European Standard No. 1.4568 (AISI 631)

Identification of Type KSN:
Housing with 2 longitudinal markings


RoHS compliant

Technical drawing

3D
Hide technical drawing
GN 615.5 Stainless Steel A4 Ball Plungers, with Ceramic Ball, with Slot sketch

Part Options / Table

Type

KNStainless steel A4, standard spring load
KSNStainless steel A4, high spring load
Show / Hide columns

Metric

Dimensions in: Inch | Metric
d1
Type KN

Type KSN
d2Length lw
Compression
Spring load ≈
Standard (Type KN)
Initial


End
Spring load ≈
High (Type KSN)
Initial


End
M 4-0.100.350.031.91 lbf (8.5 N)3.15 lbf (14 N)--
M 5M 50.120.470.041.80 lbf (8 N)3.15 lbf (14 N)3.37 lbf (15 N)4.95 lbf (22 N)
M 6M 60.140.550.042.47 lbf (11 N)4.05 lbf (18 N)4.27 lbf (19 N)6.29 lbf (28 N)
M 8M 80.180.630.064.05 lbf (18 N)6.97 lbf (31 N)8.09 lbf (36 N)13.94 lbf (62 N)
M 10M 100.240.750.085.40 lbf (24 N)10.12 lbf (45 N)12.81 lbf (57 N)23.38 lbf (104 N)
M 12M 120.310.870.105.85 lbf (26 N)11.02 lbf (49 N)13.71 lbf (61 N)24.73 lbf (110 N)
M 16M 160.390.940.149.22 lbf (41 N)19.33 lbf (86 N)15.29 lbf (68 N)31.92 lbf (142 N)

Build & Price

3D Product Configurator
Thread d1
Type


Selected Part

Total US Dollars (net)
$7.08
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
199$7.08
100249$6.49
250499$5.90
≥ 500$5.31
Prop 65: -
Please contact our Sales Department for more information: 800-877-8351
RoHS: -
This part is new in our product range, no details are available at this time. For more recent details on the RoHS compatibility, please contact our Sales Department!
Weight: 0.027 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
