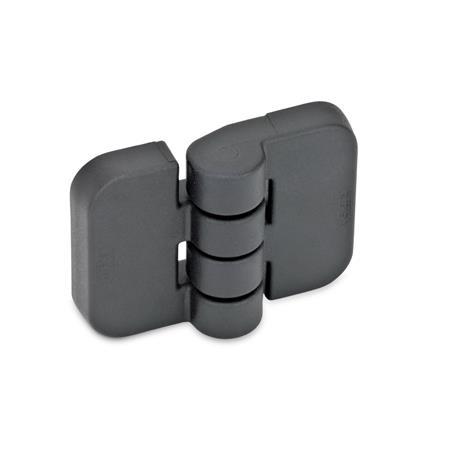

EN 158 Hinges Technopolymer Plastic

ELESA original design
code: CFJ.

Type: A - 2x2 tapped inserts

Standard Sheet EN 158 Print This Page Stainless Steel Characteristics Load Rating Information Plastic Characteristics

Product description

EN 158 hinges have a special feature that they cannot be dismantled from the outside. The assembly is only possible from the inside.

The pin is not accessible since it is fully integrated in the plastic material.

This configuration meets ultimate safety and security standards.

Specification

Plastic
Technopolymer (Polyamide PA)

Black, matte finish
Temperature resistant up to 176 °F (80 °C)

Pin
Stainless steel AISI 303

Tapped inserts
Brass, nickel plated

Threaded studs
Steel, nickel plated

RoHS

EN 158 Technopolymer Plastic Hinge sketch

Hide technical drawing

Part Options / Table

Type

A	2x2 tapped inserts
C	2x2 threaded studs
B	2x2 bores for hex head screws

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)

l₁	l₂	d₁ Thread	d₂	h₁	h₂	l₃	l₄	m₁ ±0.01	m₂ ±0.01	A/F _{in mm}	t₁	t₂

2.76	1.97	M 6	0.24	0.77	0.39	0.67	0.93	1.81	1.18	10	0.31	0.24

Build & Price

Width l₁

2.76

Length l₂

1.97

Type

A - 2x2 tapped inserts

B - 2x2 bores for hex head screws

C - 2x2 threaded studs

Selected Part

Part Number

Total (net)

US$16.04

In Stock: 127

In Stock

Quantity

Create Project List

Save as Favorites

Please note our quantity discounts (US Dollars).

Min	Max	Price
1	9	US$16.04
10	249	US$15.45
250	499	US$14.58
≥ 500		US$13.12

Prop 65: Not compliant

WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov

RoHS: Compliant

This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).

Weight: 0.132 lbs

If weight is not listed, please contact our Sales Department for additional information regarding weight.
