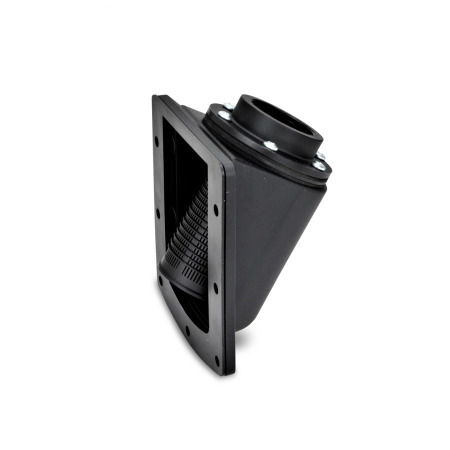

EN 664.1 Filler Strainers Plastic, Side Installation


EN 664.1 Plastic Filler Strainers, Side Installation Pipe thread d<sub>1</sub>: G 1 1/4
ELESA original design
code: PLRF+C

Product description

Information

Filler strainers EN 664.1 have a mounting flange for threaded or bayonet mount (BA) mounting of the breather cap. The strainer prevents the penetration of coarse impurities during the filling process.

The side flange is mounted to the container wall with 7 M6 screws. During assembly, it is important that the mounting screws are not overtightened (max. torque 8 Nm) to prevent deformation of the flange and thus impairment of the seal.

The M6 mounting screws for the side flange are not included.

Specification

Threaded flange
Plastic
Technopolymer (Polyamide PA)

  • Glass fiber reinforced
  • Black, matte finish

Filler strainer
Plastic
Technopolymer (Polypropylene PP)

  • Black, matte finish
  • Temperature resistant up to 194 °F (90 °C)

Flange for bayonet mounting
Steel, zinc plated, blue passivated finish


Seal
Cork, impregnated with rubber


RoHS

Accessory

Breather Caps EN 663
Breather Valve Caps EN 774
Breather Check Valve Caps EN 774.1

On request

Mounting flange without filler strainer

Technical drawing

3D
Hide technical drawing
EN 664.1 Plastic Filler Strainers, Side Installation sketch

Part Options / Table

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1
Pipe thread
d2
Bayonet mount
d3d4h1h2l1l2s
G 1 1/4BA 391.930.280.713.625.834.610.28

Build & Price

3D Product Configurator
Pipe thread d1
Bayonet mount d2

Front View with Hole Pattern

Sketch GN 664.1 bore

Selected Part

Total US Dollars (net)
$59.71
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
16$59.71
799$57.54
100249$54.28
≥ 250$48.85
Prop 65: -
Please contact our Sales Department for more information.
RoHS: -
No details on RoHS compatibility are available at this time. Please contact our Sales Department for more information.
Weight: 0.763 lbs
