GN 741 Fluid Fill / Drain Plugs Aluminum, with or without Symbol, Resistant up to 212 °F

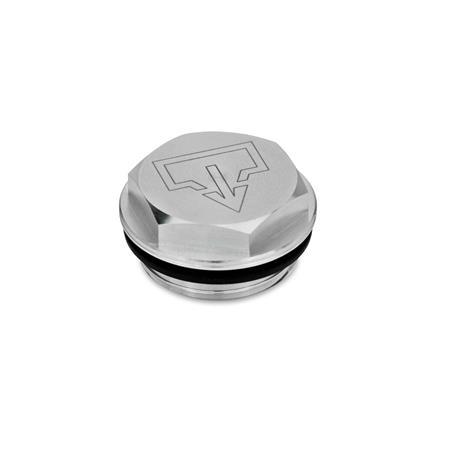

GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: AS - With drain symbol, plain finish
Identification no.: 1 - Without vent hole
Type: AS - With drain symbol, plain finish
Identification no.: 1 - Without vent hole
GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: AS - With drain symbol, plain finish
Identification no.: 1 - Without vent hole GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: AS - With drain symbol, plain finish
Identification no.: 2 - With vent hole GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: ES - With fill symbol, plain finish
Identification no.: 1 - Without vent hole GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: ES - With fill symbol, plain finish
Identification no.: 2 - With vent hole GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: OS - Without symbol, plain finish
Identification no.: 1 - Without vent hole GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F Type: OS - Without symbol, plain finish
Identification no.: 2 - With vent hole

Product description

Information

The outer diameter d1 of GN 741 fluid fill / drain plugs is matched to screw-in holes for pipe fittings according to DIN 3852.

The seal is embedded in a radial recess, and thus cannot be lost or squeezed out during tightening.

Specification

Body
Aluminum, fine turned

  • Type OS, ES, and AS
    Plain finish
  • Type OSS, ESS, and ASS
    Black anodized finish
  • Laser engraved symbols
  • Temperature resistant up to 212 °F (100 °C)

Seal
Acrylonitrile butadiene rubber (NBR)
Black


RoHS

On request

With dipstick

Technical drawing

3D
Hide technical drawing
GN 741 Aluminum Fluid Fill / Drain Plugs, with or without Symbol, Resistant up to 212 °F sketch

Part Options / Table

Type

OSWithout symbol, plain finish
OSSWithout symbol, black anodized finish
ESWith fill symbol, plain finish
ESSWith fill symbol, black anodized finish
ASWith drain symbol, plain finish
ASSWith drain symbol, black anodized finish

Identification no.

1Without vent hole
2With vent hole
Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
d1d2
Pipe thread

Fine thread
d3
Vent hole
d4
Thread
e ≈l1l2st
0.75G 1/4M 14 x 1.5--0.08M 50.680.610.310.590.31
0.87G 3/8M 16 x 1.5--0.08M 50.820.610.310.710.31
1.02G 1/2M 20 x 1.5--0.08M 50.960.630.330.830.31
1.26G 3/4M 26 x 1.5M 27 x 1.5-0.08M 51.230.670.351.060.31
1.57G 1M 33 x 1.5--0.08M 51.460.770.431.260.31
1.97G 1 1/4M 40 x 1.5M 42 x 1.5M 42 x 20.08M 51.860.830.471.610.31
2.36G 1 1/2---0.08M 52.270.870.511.970.31

Build & Price

3D Product Configurator
Diameter d1
Pipe thread d2
Fine thread d2
Type






Identification no.


Selected Part

Total US Dollars (net)
$9.49
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
149$9.49
5099$8.70
100249$7.91
≥ 250$7.12
Prop 65: Not compliant
WARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov
RoHS: Compliant
This article is RoHS-compliant in application of Annex III., which means it complies with EU Directive 2011/65/EU, including extension (2015/863/EU), for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
Weight: 0.149 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
All Prices are in US Dollars. Taxes Not Included.
