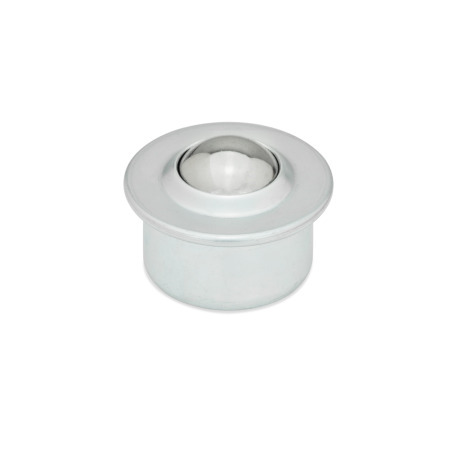

Ball Transfer Units GN 509

Housing material: S - Steel sheet metal
Load ball material: NI - Stainless steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

Overview of Types of Ball Transfer Units Technical Instructions Plastic Characteristics Stainless Steel Characteristics

Product description

Ball transfer units GN 509 are used, for example, in conveyor technology or on packing tables to move heavy loads in any direction without great effort. The roller bearing of the ball and the felt ring for dust protection ensure reliable operation and a long service life.

The diameter d₂ features a taper in the upper area, beneath the flange, which allows it to be easily and firmly installed.

Specification

Housing

Steel sheet metalS
Zinc plated, blue passivated finish
Steel sheet metalN
AISI 304 / AISI 420

Load ball

For steel housing
- Steel, Plain finishBL
- PlasticKU, polyacetal (POM)
- Stainless steelNI AISI 420
For stainless steel housing
Stainless steelNI AISI 420C

Bearing balls

Steel, plain finish for load ball BL
Stainless steel AISI 420C for load ball KU / NI

Dust cover for size 22 / 30
Felt

RoHS

Accessory

Spring Retainers GN 509.3 (Mounting Elements for Ball Transfer Units)

Your Contact

You are looking for a Winco partner near you?

Part Number	Size	d₁ Load ball	d₂ ±0.004	d₃	h₁ ±0.012	h₂ ±0.012	h₃ ±0.012	h₄	Load rating C SBL	SKU	SNI	NNI

15EJAK	15	0.62	0.945 ±0.004	1.22	0.453 ±0.012	0.374 ±0.012	0.197 ±0.012	0.11	112 lbf (500 N)	-	-	-
15EJAM	15	0.62	0.945 ±0.004	1.22	0.453 ±0.012	0.374 ±0.012	0.197 ±0.012	0.11	-	15.74 lbf (70 N)	-	-
15EJAL	15	0.62	0.945 ±0.004	1.22	0.453 ±0.012	0.374 ±0.012	0.197 ±0.012	0.11	-	-	67.44 lbf (300 N)	-
22EJAK	22	0.87	1.417 ±0.004	1.77	0.776 ±0.012	0.386 ±0.012	0.236 ±0.012	0.11	270 lbf (1200 N)	-	-	-
22EJAM	22	0.87	1.417 ±0.004	1.77	0.776 ±0.012	0.386 ±0.012	0.236 ±0.012	0.11	-	22.48 lbf (100 N)	-	-
22EJAL	22	0.87	1.417 ±0.004	1.77	0.776 ±0.012	0.386 ±0.012	0.236 ±0.012	0.11	-	-	202 lbf (900 N)	-
30EJAK	30*	1.19	1.772 ±0.004	2.17	0.945 ±0.012	0.543 ±0.012	0.276 ±0.012	0.15	450 lbf (2000 N)	-	-	-
30EJAM	30*	1.19	1.772 ±0.004	2.17	0.945 ±0.012	0.543 ±0.012	0.276 ±0.012	0.15	-	33.72 lbf (150 N)	-	-
30EJAL	30*	1.19	1.772 ±0.004	2.17	0.945 ±0.012	0.543 ±0.012	0.276 ±0.012	0.15	-	-	337 lbf (1500 N)	-

Part Number	Size	d₁ Load ball	d₂ ±0.004	d₃	h₁ ±0.012	h₂ ±0.012	h₃ ±0.012	h₄	Load rating C SBL	SKU	SNI	NNI

15EJAJ	15	0.62	0.945 ±0.004	1.22	0.453 ±0.012	0.374 ±0.012	0.197 ±0.012	0.11	-	-	-	67.44 lbf (300 N)
22EJAJ	22	0.87	1.417 ±0.004	1.77	0.776 ±0.012	0.386 ±0.012	0.236 ±0.012	0.11	-	-	-	202 lbf (900 N)

Size	d₁ Load ball	d₂ ±0.004	d₃	h₁ ±0.012	h₂ ±0.012	h₃ ±0.012	h₄	Load rating C SBL	SKU	SNI	NNI

15	0.62	0.945	1.22	0.453	0.374	0.197	0.11	112 lbf (500 N)	15.74 lbf (70 N)	67.44 lbf (300 N)	67.44 lbf (300 N)
22	0.87	1.417	1.77	0.776	0.386	0.236	0.11	270 lbf (1200 N)	22.48 lbf (100 N)	202 lbf (900 N)	202 lbf (900 N)
30*	1.19	1.772	2.17	0.945	0.543	0.276	0.15	450 lbf (2000 N)	33.72 lbf (150 N)	337 lbf (1500 N)	-

Min	Max	Price
1	49	US$10.67
50	99	US$9.78
100	249	US$8.89
≥ 250		US$8.00

Please select the country.

Select State

JW Winco Services

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time

1-800-877-8351 sales@jwwinco.com

Request Callback

JW Winco Services

Request Callback

JW Winco Handbook

Your Contact

JW Winco News

GN 509 Ball Transfer Units Steel / Stainless Steel

Product Family Stainless Steel

Product description

Specification

Accessory

Part Options / Table

Oberfläche: S - Steel sheet metal

Oberfläche: N - Steel sheet metal

Metric

Build & Price

Arrangement and Size Selection

Speed and Friction

Temperature Resistance

Selected Part

CAD Download

CAD data

Login

Email CAD File

Need Help?

This could also be interesting...

GN 509.1

GN 509.4

GN 509.5

GN 509.6

GN 509.7

GN 509.8

GN 509.10

GN 753

Recently Viewed

GN 509

GN 24

Your Contact

JW Winco Services


When determining the size of the ball transfer units, it is necessary to consider not only the weight but also the size and nature of the base area of the load. The maximum distance between the ball transfer units „a₂“ (assuming a flat base area) is calculated by dividing the shortest edge length of the load by 2.5. This ensures that the load always rests on the ball transfer units, preventing it from tipping over into the spaces between them. The required load capacity of the ball transfer units is calculated by dividing the weight of the load by 3. This results from the assumption that, due to tolerances of the load base area and the ball transfer units, only three ball transfer units are normally used.

a₁ = Shortest edge length of the load a₂ = Max. distance between ball transfer units a₂ = a₁/2.5						F₁ = Load weight F₂ = Load per ball transfer unit F₂ = F₁/3
