GN 509.1 Heavy Duty Ball Transfer Units Steel and Stainless Steel


GN 509.1 Steel and Stainless Steel Heavy Duty Ball Transfer Units Material/Finish: NNI - Housing stainless steel
Material/Finish: NNI - Housing stainless steel
GN 509.1 Steel and Stainless Steel Heavy Duty Ball Transfer Units Material/Finish: NNI - Housing stainless steel GN 509.1 Steel and Stainless Steel Heavy Duty Ball Transfer Units Material/Finish: SBL - Housing steel GN 509.1 Steel and Stainless Steel Heavy Duty Ball Transfer Units Material/Finish: SNI - Housing steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

  • corrosion-resistant
  • precise fit
  • environmentally friendly
Show all Stainless Steel products

Product description

Information

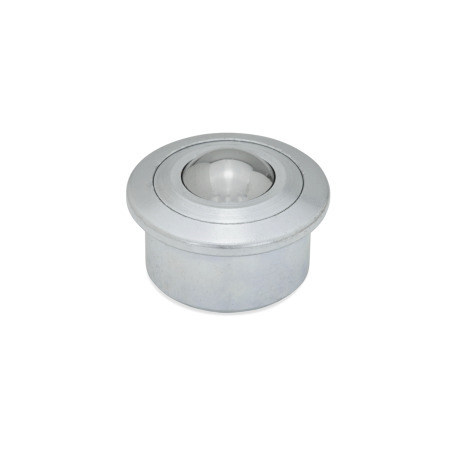

GN 509.1 ball transfer units are typically used on conveyor tracks. They enable a linear or rotary movement of heavy loads on those tracks.

Ball transfer units with sheet steel housing - GN 509.

Specification

Type SBL
Housing
Turned steel, zinc plated, blue passivated
Ball
Steel, plain finish

Type SNI
Housing
Turned steel, zinc plated, blue passivated finish
Ball
Stainless steel
European Standard No. 1.4034 (AISI 420)

Type NNI
Housing
  • Turned stainless steel
    European Standard No. 1.4028
  • Turned stainless steel
    European Standard No. 1.4305
    (Only size 15 available)

Ball
Stainless steel
European Standard No. 1.4034
(AISI 420)

RoHS compliant

Accessory

Spring rings GN 509.3

On request

Ball transfer units in thermoplastic material (polyamide)

Technical drawing

3D
Hide technical drawing
GN 509.1 Steel and Stainless Steel Heavy Duty Ball Transfer Units sketch

Part Options / Table

Show / Hide columns

Metric

Dimensions in: Inch (change to Metric)
Sized1
Ball
d2 ±0.003d3h1 ±0.012h2 ±0.012h3 ±0.012h4Load C in N
Types
SBL


SNI


NNI
120.500.871.060.670.310.160.1344.96 lbf (200 N)33.72 lbf (150 N)33.72 lbf (150 N)
150.620.941.180.790.320.140.04112 lbf (500 N)89.92 lbf (400 N)89.92 lbf (400 N)
220.871.421.771.200.390.200.09292 lbf (1300 N)225 lbf (1000 N)225 lbf (1000 N)
301.191.772.171.450.540.280.18562 lbf (2500 N)450 lbf (2000 N)450 lbf (2000 N)
451.752.442.952.110.750.370.221349 lbf (6000 N)1012 lbf (4500 N)1012 lbf (4500 N)
602.363.944.613.051.180.590.392923 lbf (13000 N)2248 lbf (10000 N)2248 lbf (10000 N)

Build & Price

Size
Material/Finish



Selected Part

Total US Dollars (net)
$26.61
In stock: 0
Call / Email for Delivery Time
Please note our quantity discounts (US Dollars).
MinMaxPrice
149$26.61
5099$24.39
100249$22.18
≥ 250$19.96
Weight: 0.077 lbs
If weight is not listed, please contact our Sales Department for additional information regarding weight.
Phone: 800-877-8351
RoHS compliant: Yes
This article conforms to RoHS, which means it complies with EU Directive 2011/65/EU for restricting the use of certain hazardous substances in electrical and electronic devices. The Directive regulates the use of hazardous substances in devices and components. The implementation in national law is summarily described with RoHS(Restriction of (the use of certain) hazardous substances)).
All Prices are in US Dollars. Taxes Not Included.

CAD Download

Email CAD File

To receive an email with a CAD download without creating an account, please enter your e-mail address. Max of 3 CAD files per day unless you create an account.

Please enter the code you can find in the picture.



Save as Favorites

Please enter the code you can find in the picture.

Need Help?

Our service team is available from Monday to Friday between 7:30 AM and 5:00 PM Central Time: 800-877-8351

Special Requests | Contact our sales team
