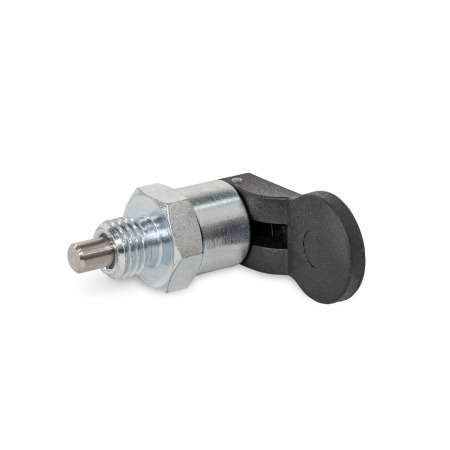

Indexing Plungers GN 823

Type: B - Non Lock-Out
Material: ST - Steel

Product Family Stainless Steel

Standard parts made of rustproof stainless steel have been designed for use in the food sector, in the chemical industry, for aggressive ambient conditions or for outdoor use.

corrosion-resistant
precise fit
environmentally friendly

Show all Stainless Steel products

List of Indexing Plunger Types Load Rating Information Metric ISO Fine Threads DIN 13 ISO Fundamental Tolerances Stainless Steel Characteristics

Product description

Indexing plungers GN 823 with operating lever can be used to lock carriages in guides, for example. The plunger pin is retracted by simply pressing the operating lever.

Type C also allows actuation by pulling and locking the plunger pin in the retracted position (lock-out).

Specification

Guide

SteelST
Zinc plated, blue passivated finish
Stainless steelNI AISI 303

Plunger pin
Stainless steel AISI 303

Lever
Plastic, polyphtalamide (PPA)

Glass fiber reinforced
BlackSW

Pressure spring
Stainless steel AISI 302

RoHS

Accessory

Locating Bushings GN 412.2 (with Collar)
Locating Bushings GN 412.4 (with Collar)
Locating Bushings with Tapered Flange GN 412.3 (with Ramping Cone)
Locating Bushings with Tapered Flange GN 412.5 (with Ramping Cone)
Spacer Bushings GN 609.5 (Stainless Steel)
Mounting Blocks GN 412.1 (Zinc Die-Cast)
Mounting Blocks GN 612.1 (Steel)
Mounting Blocks GN 612.1 (Stainless Steel)
Thin Hex Nuts GN 909 (Steel)
Thin Hex Nuts GN 909.5

Your Contact

You are looking for a Winco partner near you?

Part Number R - Standard thread	Part Number F - Fine thread	d₁ Plunger h9 Bore +0.003 / +0.001	l₁	d₂ Coding R	Coding F	d₃	l₂	l₃	l₄	l₅ ≈	l₆ ≈	l₇ ≈	A/F

823-4-5-B-R-ST-SW		0.157 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
823-4-5-B-R-NI-SW		0.157 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
	823-4-5-B-F-ST-SW	0.157 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
	823-4-5-B-F-NI-SW	0.157 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
823-5-5-B-R-ST-SW		0.197 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
823-5-5-B-R-NI-SW		0.197 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
	823-5-5-B-F-ST-SW	0.197 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
	823-5-5-B-F-NI-SW	0.197 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	-	0.59
823-6-7-B-R-ST-SW		0.236 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
823-6-7-B-R-NI-SW		0.236 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
	823-6-7-B-F-ST-SW	0.236 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
	823-6-7-B-F-NI-SW	0.236 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
823-7-7-B-R-ST-SW		0.276 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
823-7-7-B-R-NI-SW		0.276 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
	823-7-7-B-F-ST-SW	0.276 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
	823-7-7-B-F-NI-SW	0.276 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	-	0.75
823-8-10-B-R-ST-SW		0.315 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
823-8-10-B-R-NI-SW		0.315 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
	823-8-10-B-F-ST-SW	0.315 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
	823-8-10-B-F-NI-SW	0.315 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
823-10-10-B-R-ST-SW		0.394 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
823-10-10-B-R-NI-SW		0.394 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
	823-10-10-B-F-ST-SW	0.394 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87
	823-10-10-B-F-NI-SW	0.394 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	-	0.87

Part Number R - Standard thread	Part Number F - Fine thread	d₁ Plunger h9 Bore +0.003 / +0.001	l₁	d₂ Coding R	Coding F	d₃	l₂	l₃	l₄	l₅ ≈	l₆ ≈	l₇ ≈	A/F

823-4-5-C-R-ST-SW		0.157 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
823-4-5-C-R-NI-SW		0.157 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
	823-4-5-C-F-ST-SW	0.157 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
	823-4-5-C-F-NI-SW	0.157 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
823-5-5-C-R-ST-SW		0.197 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
823-5-5-C-R-NI-SW		0.197 h9 / +0.003 / +0.001	0.20	M 10	-	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
	823-5-5-C-F-ST-SW	0.197 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
	823-5-5-C-F-NI-SW	0.197 h9 / +0.003 / +0.001	0.20	-	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
823-6-7-C-R-ST-SW		0.236 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
823-6-7-C-R-NI-SW		0.236 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
	823-6-7-C-F-ST-SW	0.236 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
	823-6-7-C-F-NI-SW	0.236 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
823-7-7-C-R-ST-SW		0.276 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
823-7-7-C-R-NI-SW		0.276 h9 / +0.003 / +0.001	0.28	M 12	-	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
	823-7-7-C-F-ST-SW	0.276 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
	823-7-7-C-F-NI-SW	0.276 h9 / +0.003 / +0.001	0.28	-	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
823-8-10-C-R-ST-SW		0.315 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
823-8-10-C-R-NI-SW		0.315 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
	823-8-10-C-F-ST-SW	0.315 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
	823-8-10-C-F-NI-SW	0.315 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
823-10-10-C-R-ST-SW		0.394 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
823-10-10-C-R-NI-SW		0.394 h9 / +0.003 / +0.001	0.39	M 16	-	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
	823-10-10-C-F-ST-SW	0.394 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
	823-10-10-C-F-NI-SW	0.394 h9 / +0.003 / +0.001	0.39	-	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87

d₁ Plunger h9 Bore +0.003 / +0.001	l₁	d₂ Coding R	Coding F	d₃	l₂	l₃	l₄	l₅ ≈	l₆ ≈	l₇ ≈	A/F

0.157	0.20	M 10	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
0.197	0.20	M 10	M 10 x 1	0.67	0.31	0.79	1.02	0.08	1.18	1.85	0.59
0.236	0.28	M 12	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
0.276	0.28	M 12	M 12 x 1.5	0.87	0.39	1.06	1.38	0.12	1.57	2.48	0.75
0.315	0.39	M 16	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
0.394	0.39	M 16	M 16 x 1.5	1.02	0.47	1.30	1.69	0.12	2.01	3.07	0.87
